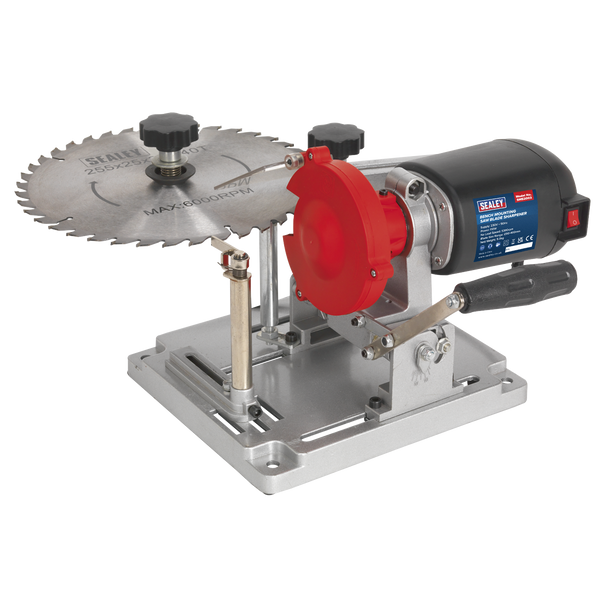

Description
• Free Speed: 5300rpm.
• Suitable for sharpening TCT saw blades in range from Ø90-400mm.
• Fitted with a Ø100mm diamond coated grinding disc for optimising TCT saw blade performance.
• Supplied with optional ceramic disc for non-TCT blades.
• Precision 0-25° angle adjustment allowing each tip to be sharpened exactly the same.
• Quick and easy-to-use, whilst also saving money on having to constantly buy new blades.
• Suitable for sharpening TCT saw blades in range from Ø90-400mm.
• Fitted with a Ø100mm diamond coated grinding disc for optimising TCT saw blade performance.
• Supplied with optional ceramic disc for non-TCT blades.
• Precision 0-25° angle adjustment allowing each tip to be sharpened exactly the same.
• Quick and easy-to-use, whilst also saving money on having to constantly buy new blades.
Spare Parts
Specification & Documents
Specification
| Motor Power: | 110W |
| Supply: | 230V |
| No-Load Speed: | 5300rpm |
| Wheel Diameter: | Ø100mm |
| Minimum Blade Diameter: | Ø90mm |
| Maximum Blade Diameter: | Ø400mm |
| Angle Adjustment: | 0-25° |
| Diamond Grinding Wheel: | SMS2003.B |
| Ceramic Grinding Wheel: | SMS2003.C |
| Weight: | 5kg |
Nett Weight: |
5kg |
Barcode: |
5051747893412 |
Declaration of Conformity: |
|
Parts Diagram: |
|
Instructions: |
