Description

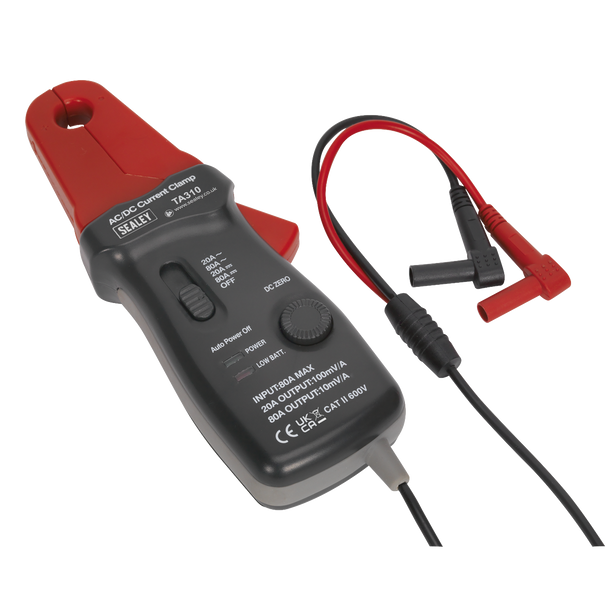

• Designed for use with a standard multimeter and measures current draw from vehicle components in situ.
• Suitable for measuring both AC and DC current, without breaking into the circuit, with a 20A and 80A setting for accurate measurement.
• Features a Ø12mm clamp ideal for testing individual wires.
• Fitted with 4mm banana connectors and supplied in storage pouch.
• Powered by 9V battery (supplied).
• Can also be used with an oscilloscope using a suitable BNC conversion adaptor.
• Suitable for measuring both AC and DC current, without breaking into the circuit, with a 20A and 80A setting for accurate measurement.
• Features a Ø12mm clamp ideal for testing individual wires.
• Fitted with 4mm banana connectors and supplied in storage pouch.
• Powered by 9V battery (supplied).
• Can also be used with an oscilloscope using a suitable BNC conversion adaptor.
Specification & Documents
Specification
| TA310 Captured Conductor Size: | Ø8mm maximum |
| Low Battery Indicator: | LED red |
| Operating Temperature: | 0°C to 50°C. |
| Storage Temperature: | -15°C to 50°C. |
| Battery Type: | 9V DC |
| Typical Battery Life: | 80hrs (alkaline) |
| Weight: | 240g |
| TA310 Dimensions (H x W x D): | 190mm x 70mm x 38mm |
| Output Connection: | Banana plugs (red & black) |
| 20A (output: 100mV/A=1mV/10mA): | <2A use DC or rms AC for 200mV range of the multimeter,>2A use DC or rms AC for 2V range of the multimeter. |
| 80A (output: 10mV/A): | DC or rms AC for 200mV range of the multimeter. |
Nett Weight: |
0.31kg |
Barcode: |
5051747779686 |
