Description

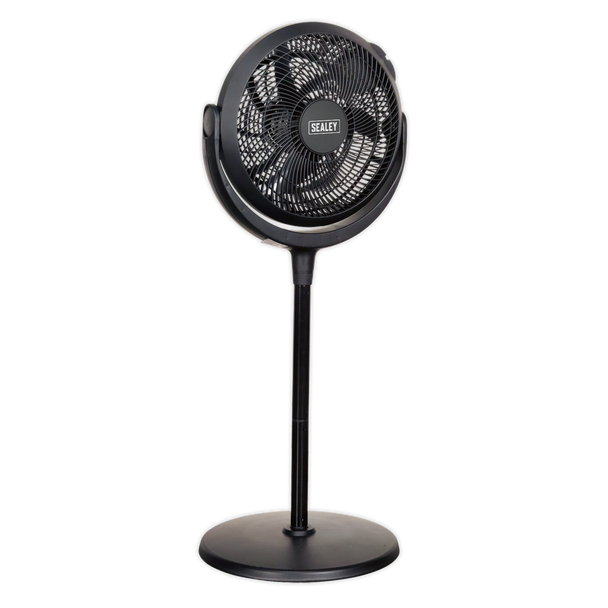

• Versatile fan manufactured from durable composite material with three height stages and three speeds.
• Adding or removing threaded extension sections converts the fan between a stand, low stand and desk fan with no need for tools.
• Fan head pivots vertically through 180° to control the direction of airflow.
• Fitted with 3-pin plug.
• Adjustable Height: 530/740/1000mm.
• Adding or removing threaded extension sections converts the fan between a stand, low stand and desk fan with no need for tools.
• Fan head pivots vertically through 180° to control the direction of airflow.
• Fitted with 3-pin plug.
• Adjustable Height: 530/740/1000mm.
Spare Parts
Specification & Documents
Specification
| Maximum Flow Rate (F): | 11.3m³/min(388cfm) |
| Fan Power Input (P): | 36.3W |
| Service Value (SV): | 0.31 (m³/min)/W |
| Standby Power Consumption (Psb): | 0.0W |
| Seasonal Electrical Consumption (Q): | 14.4kWh/a |
| Fan Sound Power Level (Lwa): | 60dB(A) |
| Maximum Air Velocity (c): | 3.51m/s |
Speeds: |
3 |
Supply: |
230V |
Nett Weight: |
3.15kg |
Speed Range: |
1200-1350rpm |
Power: |
36.3W |
Height(s): |
530/740/1000mm |
Fan Diameter: |
Ø300mm(12") |
Barcode: |
5054511077988 |
Instructions: |
|
Declaration of Conformity: |
|
Parts Diagram: |
