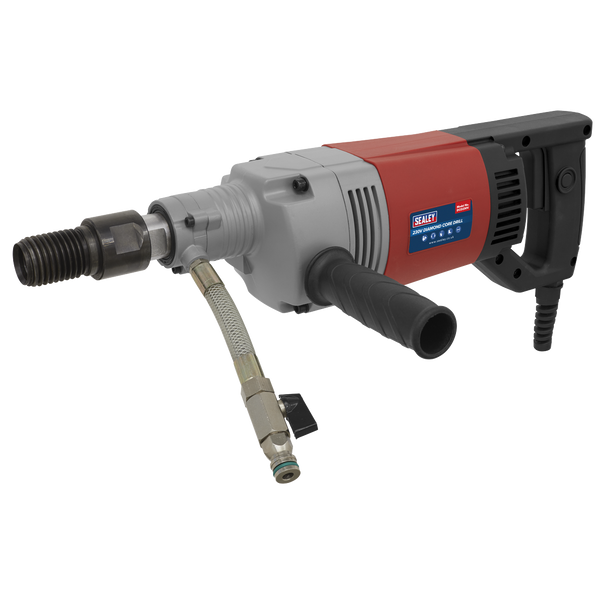

Description
• Manufactured using high quality components for performance and reliability.
• Lightweight and compact unit.
• Fitted with soft start and overload protection.
• Designed for use in construction and other applications when working with masonry and concrete.
• Supplied with adaptor, water cooling kit and side handles.
• Can be used independently or with optional Model No. DCDST Diamond Core Drill Stand.
• Lightweight and compact unit.
• Fitted with soft start and overload protection.
• Designed for use in construction and other applications when working with masonry and concrete.
• Supplied with adaptor, water cooling kit and side handles.
• Can be used independently or with optional Model No. DCDST Diamond Core Drill Stand.
Spare Parts
Specification & Documents
Specification
| Masonry Drilling Range: | 18-160mm |
| Concrete Drilling Range: | 18-130mm |
| Power Supply: | 230V - 50Hz |
| Motor Power: | 2300W |
| No Load Speed: | 0 - 1900rpm |
| Borehole Depth: | 380mm |
| Maximum Cutter Size: | Ø160 x 380mm |

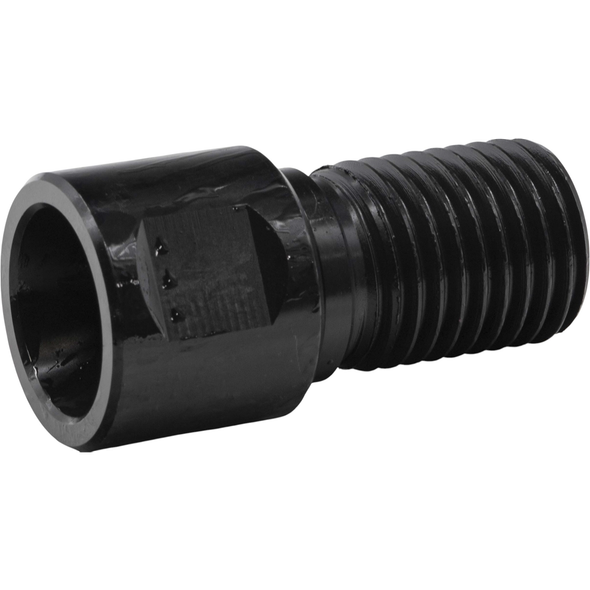

| Adaptor: | 1-1/4"UNC Thread |
| Optional Drill Stand: | Model No. DCDST |
Cable Length: |
3.5m |
Motor Power: |
2300W |
No-Load Speed: |
0 - 1900rpm |
Supply: |
230V~50Hz |
Nett Weight: |
7kg |
Barcode: |
5054511806571 |
Declaration of Conformity: |
|
Parts Diagram: |
|
Instructions: |
