Description

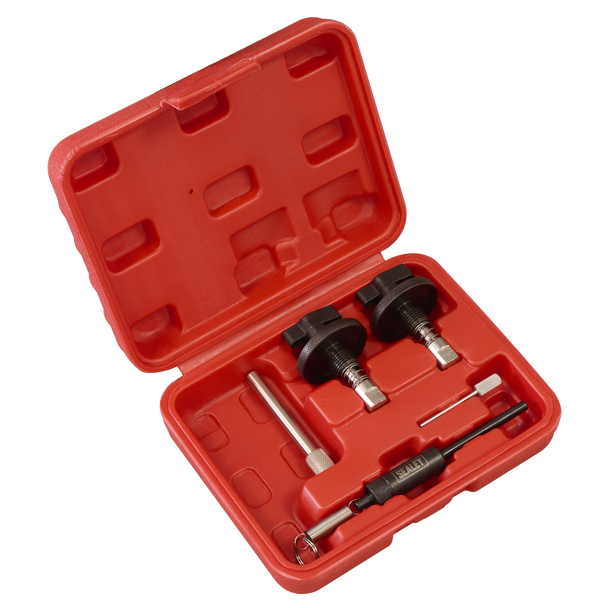

• ALFA ROMEO - Suitable for timing the camshaft and crankshaft, on chain drive 1.3 diesel engines.
• TENSIONER LOCKING PIN - Set also includes a tensioner locking pin.
• DIESEL ENGINE TIMING TOOL - Supplied in storage case with instructions and a warning tag.
• TENSIONER LOCKING PIN - Set also includes a tensioner locking pin.
• DIESEL ENGINE TIMING TOOL - Supplied in storage case with instructions and a warning tag.
Spare Parts
Specification & Documents
Application(s)
| Applications: | |
| Alfa Romeo: | MiTo (08-16) |
| Citroen: | Nemo (10-16) |
| Fiat: | 500 (07-16), Doblo/Cargo (04-10), Fiorino (08-16), Grande Punto (05-11), Idea (04-12), Linea (07-11), Panda (03-16), Punto (03-11), Punto Evo (09-14), Qubo (08-16) |
| Ford: | Ka (09-15) |
| Lancia: | Musa (04-13), Ypsilon (03-15) |
| Peugeot: | Bipper (10-16) |
| Suzuki: | Ignis (03-09), Splash (08-11), Swift (06-14), Wagon R+ (03-08) |
| Vauxhall/Opel: | Agila (03-08), Agila-B (08-10), Astra-H (04-11), Astra-J (09-15), Combo-C (03-12), Corsa-C (03-12), Corsa-D (06-14), Meriva-A (04-10), Meriva-B (10-15), Tigra-B (04-10) |
Associated Tool(s)
Engine Codes
| Engine Codes: | |
| Alfa Romeo JTD Multijet: | 199A3.000, 199B1.000 |
| Citroen: | F13DTE5 (FHZ) |
| Fiat JTD Multijet: | 169A1.000, 188A8.000, 188A9.000, 199A2.000, 199A3.000, 199A9.000, 199B1.000, 199B2.000, 223A9.000 |
| Ford TDCi: | 169A1.000(FD4) |
| Lancia JTD Multijet: | 188A9.000, 199A3.000, 199B1.000 |
| Peugeot: | (FHZ)F13DTE5 |
| Suzuki DDiS: | D13A, Z13DT, Z13DTJ, Z13DTJ Eco |
| Vauxhall/Opel CDTi: | A13DTC, A13DTE, A13DTR, D13A, LDV/A13DTC, LSF/A13DTE, Y13DT, Y13DTH, Z13DT, Z13DTi, Z13DTH, Z13DTJ, Z13DTR |
OEM Tool(s)
| OEM Tools: | |
| Alfa Romeo/Fiat/Lancia: | 1.871.00.900 |
| Citroen: | 104-A, 0198-J |
| Ford: | 303-1472 |
| Peugeot: | 104-A, 0198-J |
| Suzuki: | 09912-38300, 09916-98610, 09917-68610 |
| Vauxhall/Opel: | EN-46781, EN-46785, KM-955 |
Nett Weight: |
0.62kg |
Barcode: |
5054630273551 |
