Diesel Engine Timing Tool Kit for PSA, Ford, Volvo 1.4D/1.5D/1.6D HDi/TDCi - Belt Drive [VSE5846]

Name: Diesel Engine Timing Tool Kit for PSA, Ford, Volvo 1.4D/1.5D/1.6D HDi/TDCi - Belt Drive [VSE5846]
Brand: Sealey
SKU: VSE5846
Price: 15.54 GBP
Availability: OutOfStock

(No reviews yet) Write a Review

Skip Gallery

On Sale

Now: £15.54

Inc. VAT

List Price: £17.94

Inc. VAT

Now: £12.95

Exc. VAT

List Price: £14.95

Exc. VAT

Sold via SEALEY stockists - contact your preferred stockist for availability and promotional pricing.

Shop Online Stockists Find Local Stockist

Description
Spare Parts
Warranty Information
Specification & Documents

Description

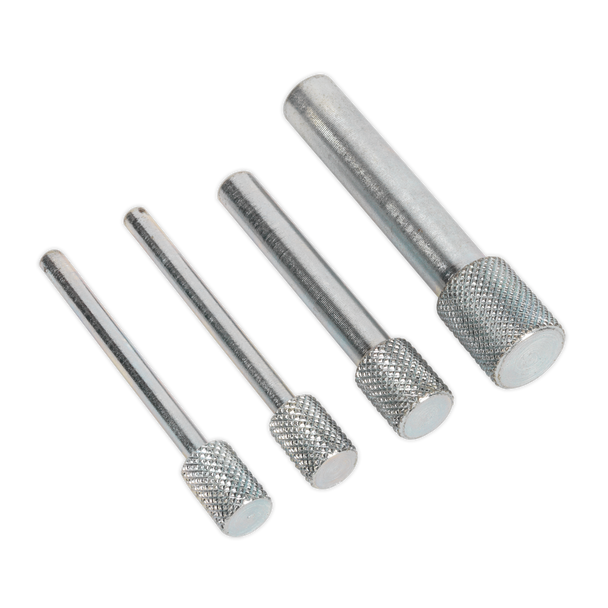

• Set of locking pins for timing belt replacement on Ford 1.5, PSA 1.4 (DV4) and 1.6 (DV6) diesel engines fitted in Citroen, Peugeot, Ford, Mazda, Suzuki, Toyota and Volvo models.
• These timing pins lock and hold the camshaft, crankshaft, flywheel and HP pump in the timed position.

View AllClose

Spare Parts

Product
Price

Total: items /

Adding your products to cart

View Cart Continue Shopping

Warranty Information

View AllClose

Specification & Documents

Application(s)

Applications:
Citroen:	Berlingo I/II (05-11), Berlingo III (08-18), Berlingo IV (14-19), C1 (05-10), C2 (03-10), C3 I/II (02-10), C3 III (10-18), C III IV (16-18), C3 Picasso (09-12), C3 Pluriel (04-10), DS3 (09-12), C4 (04-11), C4 II (11-18), C4 Picasso/Grand Picasso (06-18), C5 II (04-08), C5 III (07-12), DS4 (11-12), Nemo (08-10), Xsara II (04-08), Xsara Picasso (04-10)
Ford:	B-Max (12-18), C-Max (07-15), EcoSport (13-18), Fiesta (02-21), Focus (04-18), Focus C-Max (03-18), Fusion (04-11), Grand C-Max (10-18), Tourneo Courier (14-16)
Mazda:	2 (02-10), 3 (04-12), 5 (10-12)
Peugeot:	107 (05-10), 1007 (05-10), 206 (01-12), 206+ (10-13), 206CC (05-07), 207 (06-13), 207CC (07-15), 208 (12-18), 2008 (12-17), 307 (01-08), 308 (07-18), 308CC (09-17), 3008 (09-18), 407 (04-11), 4008 (12-15), 508 (11-18), 5008 (09-18), Bipper (08-10), Expert (10-12), Partner I/II (05-11), Partner III (08-18), Rifter (18-19). Traveller (16-20)
Suzuki:	Liana (04-08), SX4 (07-11)
Toyota:	Aygo (05-10)
Volvo:	C30 (06-13), S40 (04-12), S60 (11-15), S80 (09-15), V40 (12-15), V50 (04-12), V60 (11-15), V70 (11-15)

Associated Tool(s)

Engine Codes

Engine Codes:
1.4D:	F6JA, F6JB
1.4D D-4D:	ZWZ-TV
1.4D DDiS:	(DV4)8HY
1.4D HDi:	DV4C(8HR), DV4TD(8HT), DV4TD(8HW), DV4TD(8HX), DV4TD(8HZ), DV4TED(8HS), DV4TED4(8HX), DV4TED4(8HY), DVTED4(8HV)
1.4D TDCi:	F6JA, F6JB, F6JC, F6JD, KVJA
1.5D TDCi:	ENUG, UGCA, UGJC, XUJA, XUJB, XUJC, XUJF, XUJG, XUJH, XUJK, XUJL, XUJN, XUJM, XWDA, XWDB, XWDC, XWDD, XWDE, XWJB, XWJC, XXDA, XXDB, XXDC, XXDD
1.6D:	Y6, MZ-CD(Y6)
1.6D DDiS:	DV6(9HX)
1.6D eDrive:	D4162T, D4164T
1.6D eHDi:	DV6C(9HR), DV6FC(BHW), DV6FC(BHX), DV6FC(BHY), DV6FC(BHZ), DV6FDU(BHV), DV6FCU(BHX), DV6FDU(BHS)
1.6D HDi:	DV6(9HR), DV6ATED(9HX), DV6ATED(9HY), DV6ATED4(9HX), DV6AUTED4(9HX), DV6BTED4(9HT), DV6BTED4(9HW), DV6BUTED4(9HT), DV6C(9HL), DV6C(9HR), DV6C9(HR), DV6CATED(9HX), DV6D(9HP), DV6DTED(9HJ), DV6DTED(9HP), DV6ETED(9HN), DV6DTED(9HF), DV6FD (BHY), DV6FE (BHW), DV6TED(9HP), DV6TED4(9HV), DV6TED4(9HW), DV6TED4(9HX), DV6TED4(9HY), DV6TED4(9HZ), DV6TED4B, DV6TED4B(9HV), DV6TED4BU(9HS), DV6UTED4(9HU), DV6UTED4(9HX), DVTED4(9HV)
1.6D TDCi:	G8DA, G8DB, G8DD, G8DE, G8DF, GPDA, GPDC, HHDA, HHDB, HHJA, HHJB, HHJC, HHJD, HHJE, HHJF, MTDA, NGDA, T1DA, T1DB, T3DA, T3DB, T3JA, T3JB, TZJA, TZJB, UBJA
1.6D TDCI ECOnetic:	G8DD, GPDA, HHJD, TZJA, TZJB
2.0D HDi:	DW10FC(AHH), DW10FD(AHX)

OEM Tool(s)

OEM Tools:
Flywheel Locking Pin (VSE5846.01):	303-734 (21-262) (Ford), 49JE02-020 (Mazda), 0194-C (PSA), 09910-05410 (Suzuki), 999-7169 (Volvo)
Camshaft/HP Fuel Pump Locking Pins (VSE5846.02):	11-0-790 (BMW), 303-735 (212-263) (Ford), 49JE02-021 (Mazda), 0194-B (PSA), 09910-05410 Suzuki, 999-7122 (Volvo)
Crankshaft Locking Pin (VSE5846.03):	11-0-300 (BMW), 303-732 (21-260) (Ford), 49JE02-018 (Mazda), 0194-A (PSA), 09910-05410 (Suzuki), 999-7121 (Volvo)

Nett Weight:	0.15kg
Barcode:	5051747473430

View AllClose

You Might Also Need

Related Products

Trolley Jack with Super Rocket Lift 3 Tonne [3015CXD]

Sealey

List: £245.94

Inc. VAT

List: £204.95

Exc. VAT

• VERSATILE LIFTING RANGE - Minimum saddle height 120mm, maximum saddle height 456mm. • TWIN PISTON SUPER ROCKET LIFT - Brings the lifting arm straight into contact with the jacking point. •...

Premier TRX-Star/Security TRX-Star/Hex/Ribe/Spline Bit Set 3/8" & 1/2"Sq Drive 74pc [AK21974]

Premier

Now: £53.94

Inc. VAT

List: £81.54

Inc. VAT

Now: £44.95

Exc. VAT

List: £67.95

Exc. VAT

• One of a comprehensive range of Premier Hand Tools, suitable for daily professional use. • Chrome Vanadium 6150 steel bits, each size in 30 and 75mm lengths. • Hardened and tempered for added...

Premier Metric/Imperial/Whitworth Socket Set 3/8" & 1/2"Sq Drive 64pc [AK694]

Premier

List: £227.94

Inc. VAT

List: £189.95

Exc. VAT

• One of a comprehensive range of Premier Hand Tools, suitable for daily professional use. • Deluxe professional socket set with heat treated Chrome Vanadium steel WallDrive® sockets. • Dual...

Premier Axle Stands (Pair) 3 Tonne Capacity per Stand - White [AS3]

Premier

Now: £65.94

Inc. VAT

List: £77.94

Inc. VAT

Now: £54.95

Exc. VAT

List: £64.95

Exc. VAT

• Heavy-duty axle stands to safely support vehicles for extended periods of time. • Large crutches for good load distribution. • The heavy gauge steel frame and welded construction gives superior...

Penlight 3W COB LED [LED125]

Sealey

Now: £6.54

Inc. VAT

List: £9.54

Inc. VAT

Now: £5.45

Exc. VAT

List: £7.95

Exc. VAT

• Professional aluminium design. • Features pocket/belt clip with integrated magnet for hands-free operation. • Produces up to 280 lumens. • Top mounted push-button on/off switch. • Ideal for use in...

Premier Light Palm Tactouch Mechanic's Gloves (9) - Large [MG798L]

Premier

List: £29.94

Inc. VAT

List: £24.95

Exc. VAT

• Professional close fitting gloves with touchscreen index fingertips. • Unlike conventional mechanic's gloves they allow precision control when working with small fixings and tools. • Soft,...

Siegen Torque Wrench 1/2"Sq Drive [S0456]

Siegen

List: £80.34

Inc. VAT

List: £66.95

Exc. VAT

• SIEGEN BY SEALEY - Part of the Siegen by Sealey range of quality tools at competitive prices. • HEAT TREATED STEEL RATCHET HEAD – Fully hardened and tempered steel for strength and durability. •...

Premier Calibrated Micrometer Style Torque Wrench 1/2"Sq Drive 40-210Nm [STW102]

Premier

List: £119.94

Inc. VAT

List: £99.95

Exc. VAT

• One of a comprehensive range of Premier Hand Tools, suitable for daily professional use. • Range: 40-210Nm(30-155lb.ft). • Chrome Vanadium steel ratchet head with smooth action mechanism. •...

VS784.V2_NO_LID_STRAIGHT.png — Quick view

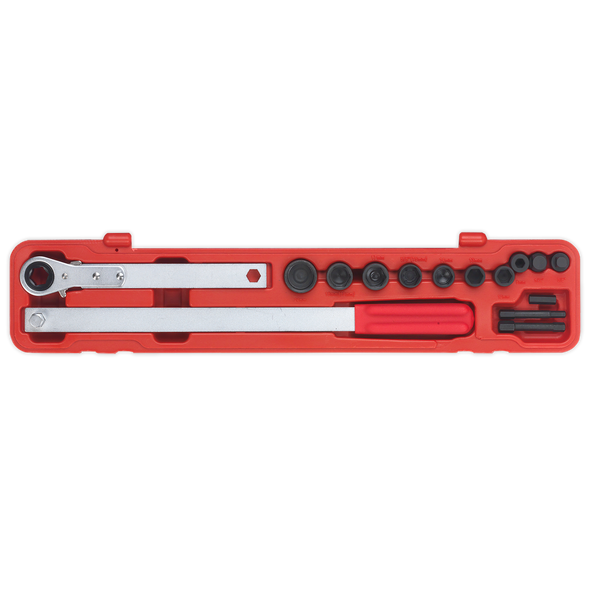

Ratchet Action Auxiliary Belt Tension Tool Kit [VS784]
