Description

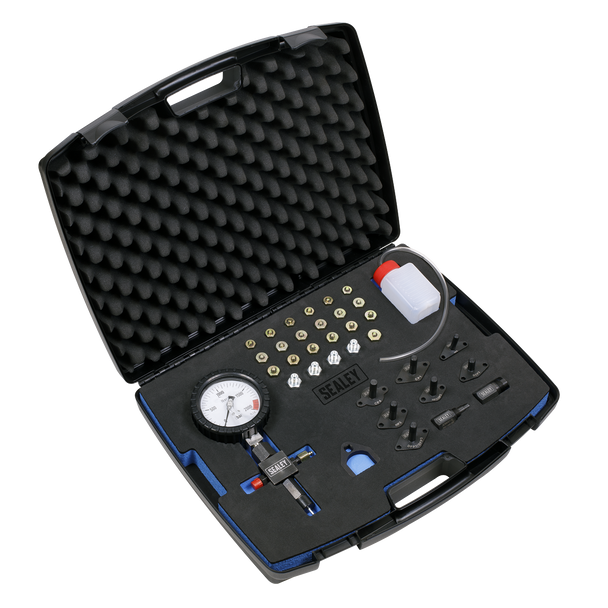

• Essential tool for accurately measuring the high pressure fuel circuit of diesel common rail systems.
• Features 2,000bar gauge, pressure relief valve and high pressure flexible hoses.
• The kit also includes a set of dummy pump regulator and injector pipe blanks.
• Kit allows for a variety of tests to be conducted: - Engine cranking/running pressure test - Maximum pump pressure test - Pump pressure regulator test - Injector leakage test.
• Features 2,000bar gauge, pressure relief valve and high pressure flexible hoses.
• The kit also includes a set of dummy pump regulator and injector pipe blanks.
• Kit allows for a variety of tests to be conducted: - Engine cranking/running pressure test - Maximum pump pressure test - Pump pressure regulator test - Injector leakage test.
Spare Parts
Specification & Documents
Specification
| Gauge Pressure Range: | 0-2000bar |
| Hose Length: | 500mm (x6) |
| Hose Fittings: | M12 x 1.5 (x2), M14 x 1.5 (x2), M14 x 1 (x1), M16 x 1 (x1) |
| Hose Fitting Adaptors: | M12 x 1.25 (x2), M14 x 1.25 (x2) |
| Dummy Regulator Applications: | Bosch CP1, Bosch CP3, Bosch CP4, Delphi DFP1/DFP3, Denso HP1/HP2, Denso HP3, Siemens DCP1, Siemens DCP2 |
| Injector Pipe Blanks: | M12 x 1.5 (x6), M14 x 1.5 (x6), M14 x 1 (x6) |
| Pump Outlet Blank: | M12 x 1 (x1) |
Nett Weight: |
5.56kg |
Barcode: |
5054511978940 |
Instructions: |
