Description

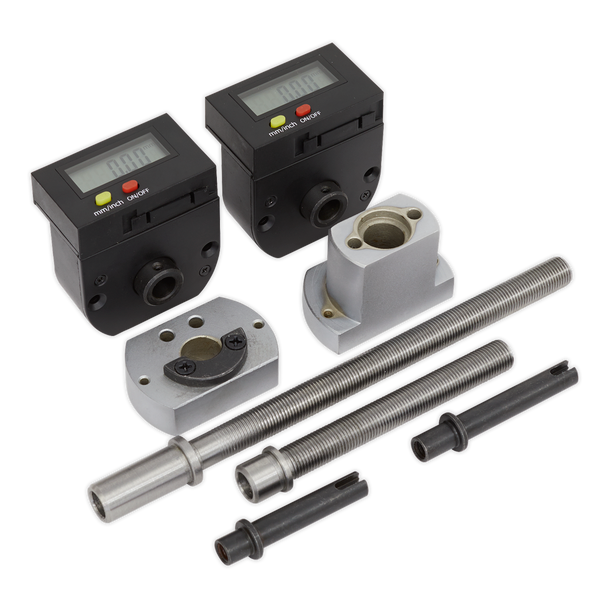

• Digital display for the cross slide and the compound tool rest to replace the standard graduated scales.
• These LCD units improve accuracy, save reading time and minimize errors.
• Imperial or Metric readings may be selected and the reading can be zeroed at any point.
• Three decimal place (Metric) and four decimal place (Imperial) displays with an accuracies of ± 0.025mm/0.001".
• Requires CR2032 – 3V lithium-ion batteries (not included).
• These LCD units improve accuracy, save reading time and minimize errors.
• Imperial or Metric readings may be selected and the reading can be zeroed at any point.
• Three decimal place (Metric) and four decimal place (Imperial) displays with an accuracies of ± 0.025mm/0.001".
• Requires CR2032 – 3V lithium-ion batteries (not included).
Spare Parts
Specification & Documents
Specification
| Description: | Digital Feed Display |
| Application(s): | |
| Lathe/Mill/Drill SM2503: | - |
| Lathe SM3002: | Yes |
| Specification: | |
| Metric Display: | 3 Decimal Places |
| Imperial Display: | 4 Decimal Places |
| Accuracy: | ± 0.025mm/0.001" |
| Battery: | CR2032 – 3V Lithium-ion (not included) |
Nett Weight: |
0.00kg |
Barcode: |
5054511371574 |
Instructions: |
|
Parts Diagram: |
