Description
• FUEL PRESSURE READINGS – Real-time minimum and maximum pressure values on GDI fuel circuits.
• EASY-TO-READ DIGITAL DISPLAY – With a 0.01 display resolution.
• 2.8" BACKLIT DISPLAY – Shows data in bright and low ambient light.
• PRESSURE UNITS – psi, bar, kg/cm²
• AUTO-POWER-OFF – Conserves battery if left idle.
• WARNING ALARM – If the pressure exceeds 5148psi (355 bar).
• SET INCLUDES – Fuel Hose (x2), T-Piece, Fuel Line Adaptor (x2).

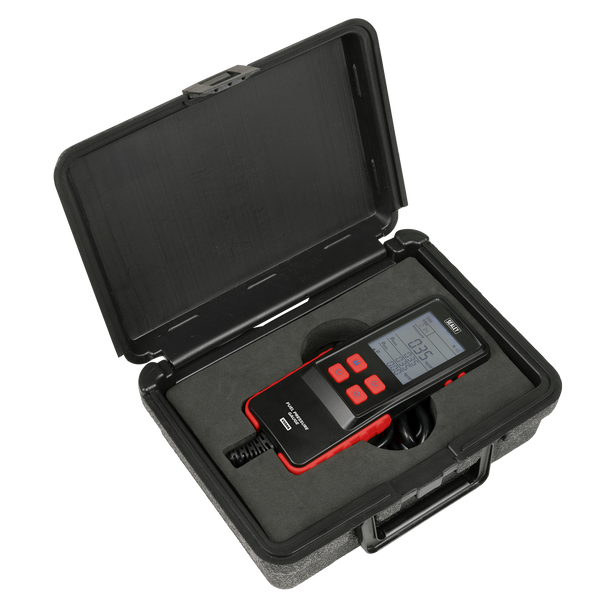

• SUPPLIED IN STORAGE CASE – For easy transportation.
• EASY-TO-READ DIGITAL DISPLAY – With a 0.01 display resolution.
• 2.8" BACKLIT DISPLAY – Shows data in bright and low ambient light.
• PRESSURE UNITS – psi, bar, kg/cm²
• AUTO-POWER-OFF – Conserves battery if left idle.
• WARNING ALARM – If the pressure exceeds 5148psi (355 bar).
• SET INCLUDES – Fuel Hose (x2), T-Piece, Fuel Line Adaptor (x2).
• SUPPLIED IN STORAGE CASE – For easy transportation.
Spare Parts
Specification & Documents
Specification
| Operating Temperature: | -10 to 60°C |
| Operating Voltage: | 6V |
| Pressure units: | psi, bar, kg/cm² |
| Accuracy: | 1% FS |
| Range: | 0 to 5221psi (0 to 360bar) |
| Resolution: | 0.01bar, 0.01kg/cm², 0.01psi. |
| Battery: | 4 x AAA (not included) |
| Overload Pressure: | 5801psi (400bar) |
| Hose Length: | 550mm (x2) |
| Adaptors: | M14 x 1.5/M15 x 1mm, M15 x 1/M14 x 1.5mm, T-Piece |
Nett Weight: |
1.5kg |
Barcode: |
5054630563584 |
Parts Diagram: |
|
Instructions: |
|
Declaration of Conformity: |
