Description

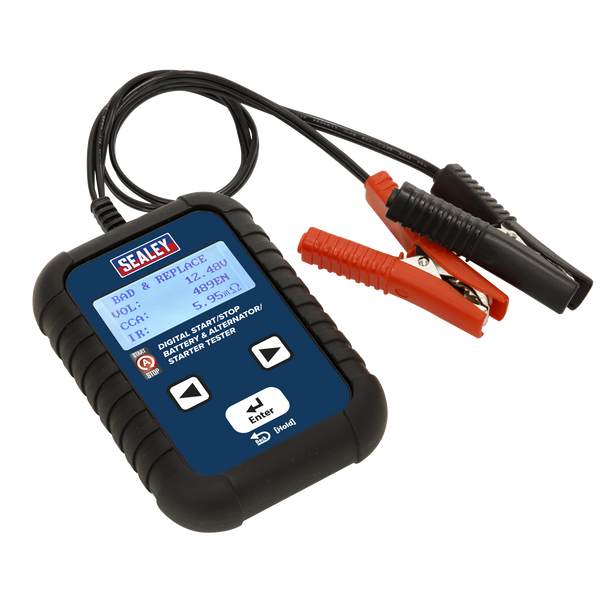

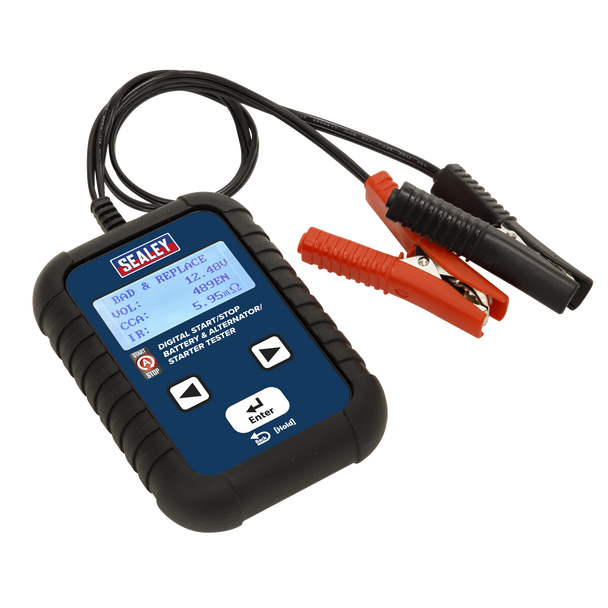

• Robust and simple-to-use design offers a full in-vehicle diagnosis of the vehicle battery, starter motor and alternator in seconds.
• Professional tool supports all 12V batteries including standard Lead-Acid, VRLA, GEL plus AGM and EFB found on all Start/Stop vehicles.
• The in-vehicle test mode allows diagnosis of battery health, state of charge, internal resistance, cranking voltage and a comprehensive charging system voltage at rest and under load.
• Equipped with reverse polarity protection and a battery temperature compensation feature.
• Fitted with a heavy-duty rubber protection cover.
• Professional tool supports all 12V batteries including standard Lead-Acid, VRLA, GEL plus AGM and EFB found on all Start/Stop vehicles.
• The in-vehicle test mode allows diagnosis of battery health, state of charge, internal resistance, cranking voltage and a comprehensive charging system voltage at rest and under load.
• Equipped with reverse polarity protection and a battery temperature compensation feature.
• Fitted with a heavy-duty rubber protection cover.
Specification & Documents
Test Ranges
| Test Ranges: | 40-1885 CCA* EN, 40-2000 CCA* SAE, 50-2400 CCA* CA(MCA), 30-1320 CCA* IEC, 25-1120 CCA* DIN |
Rated Battery Voltage: |
12V |
Rating Systems: |
EN, JIS, DIN, IEC, CA(MAC), SAE |
Voltage Range: |
8-30V |
Nett Weight: |
271g |
Note: |
*CCA - Cold Cranking Amps |
Languages: |
English, French, Spanish, German, Italian, Portuguese, Dutch, Russian, Turkish, Czech |
Charging System Capability: |
12/24V |
Barcode: |
5054511864779 |
Declaration of Conformity: |
|
Instructions: |
