Description

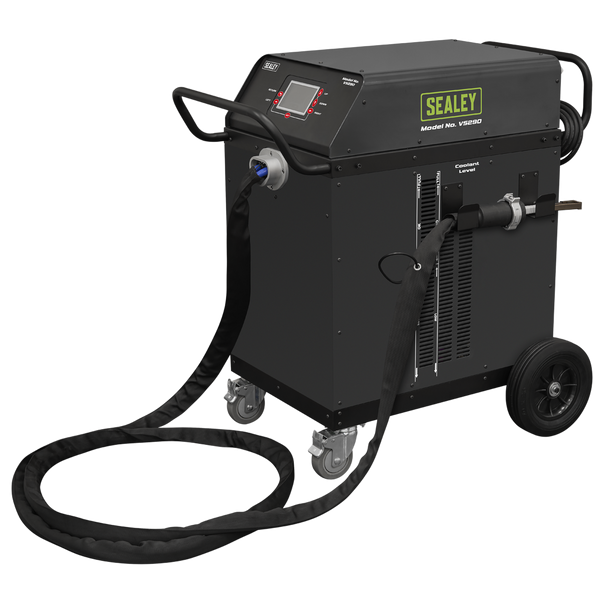

• 12KW INDUCTION HEATER - Delivers longer-lasting high heat fast and effectively.
• VERSATILE - Ideal for cars, trucks, agricultural machinery, boats and engineering.
• APPLICATION - Suitable for larger seized nuts and bolts including track rods. Straightening of steel frames and chassis and can pre-heat larger wielding areas.
• VARIABLE HEAT SETTINGS - Enables the users to apply correct heat for specific jobs.
• MEMORY FUNCTION - Up to ten heat settings can be stored for the user's convenience.
• INDUCTOR CABLE LENGTH - 5m.
• 3-PHASE PLUG CABLE LENGTH - 4.7m.
• LARGE CAPACITY WATER TANK - 42L.
• VERSATILE - Ideal for cars, trucks, agricultural machinery, boats and engineering.
• APPLICATION - Suitable for larger seized nuts and bolts including track rods. Straightening of steel frames and chassis and can pre-heat larger wielding areas.
• VARIABLE HEAT SETTINGS - Enables the users to apply correct heat for specific jobs.
• MEMORY FUNCTION - Up to ten heat settings can be stored for the user's convenience.
• INDUCTOR CABLE LENGTH - 5m.
• 3-PHASE PLUG CABLE LENGTH - 4.7m.
• LARGE CAPACITY WATER TANK - 42L.
Spare Parts
Specification & Documents
Specification
| Maximum Weight With Coolant: | 144kg |
| Ingress Protection Rating: | IP21 |
| Tank Capacity: | 42L |
| Induction Cable Length: | 5m |
| Cable Length: | 4.7m |
| Working Environment Temperature: | 0 to 40°C |
| Connected Load: | 9 kVa |
| Duty Cycle: | 38mins @ 20° C, 8mins off |
| Cooling System: | Water Cooled with Refrigerator |
Frequency: |
14-19kHz |
Power: |
12kW |
Supply: |
415V ~ 50Hz 3 Phase |
Nett Weight: |
104kg |
Barcode: |
5054630575679 |
Declaration of Conformity: |
|
Safety Data Sheet: |
|
Parts Diagram: |
|
Instructions: |
