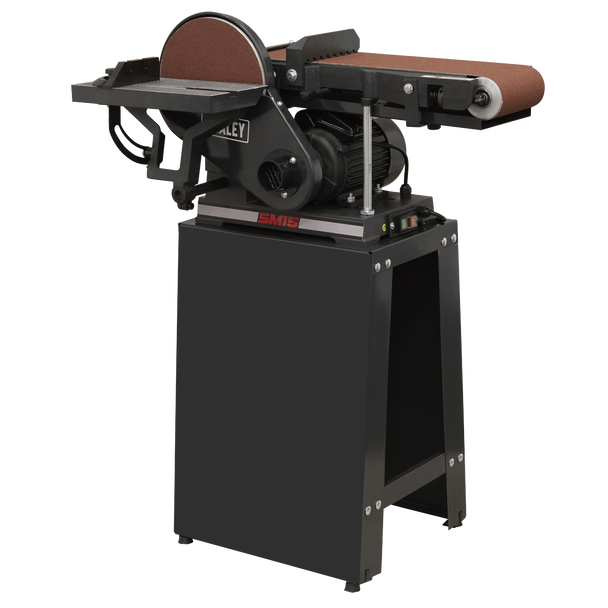

Description
• Fitted with heavy-duty induction motor.
• Sanding disc table tilts up to 45° and is supplied with mitre gauge for accurate angle sanding.
• Belt can be used horizontally, vertically or any angle in between.
• Suitable for general woodworking applications and supplied with floor stand.
• Overall Dimensions: 995 x 455 x 715mm.
• Sanding disc table tilts up to 45° and is supplied with mitre gauge for accurate angle sanding.
• Belt can be used horizontally, vertically or any angle in between.
• Suitable for general woodworking applications and supplied with floor stand.
• Overall Dimensions: 995 x 455 x 715mm.
Spare Parts
Specification & Documents
Consumable Parts
| Replacement Sanding Belts: | |
| Model No: | Grade |
| SB0017: | 80Grit |
| SB0018: | 100Grit |
| Replacement Sanding Disc: | |
| Model No: | Grade |
| SSD03: | 80Grit |
Motor Power: |
550W - 230V |
Table Size: |
314 x 157mm |
Table Tilt: |
0-45º |
Nett Weight: |
46.1kg |
Dust Extraction Diameter: |
Ø55mm |
Disc Speed: |
1400rpm |
Disc Size: |
Ø230mm |
Belt Speed: |
330m/min |
Belt Size(s): |
1220 x 150mm |
Barcode: |
5024209182836 |
Declaration of Conformity: |
|
Parts Diagram: |
|
Instructions: |
