Description
• For a small premium over the cost of a bench drill, you can avoid tying up valuable bench space.

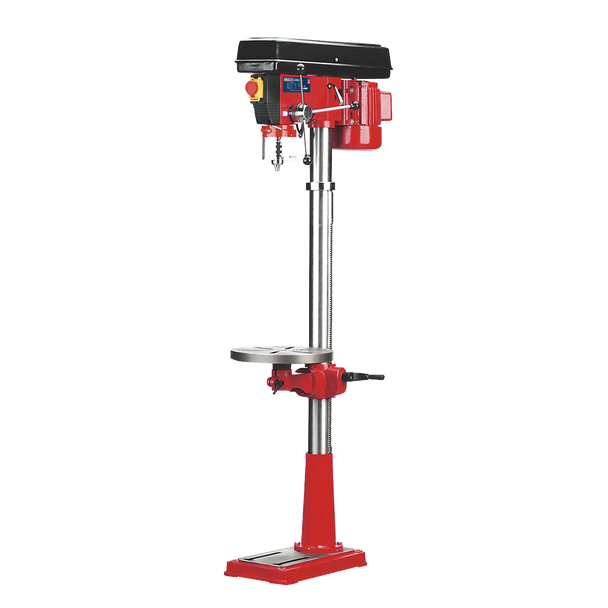

• This floor standing drill has adjustable tilting table and rise and fall height adjustment by rack and pinion.
• All models are fully CE certificated and approved for use in educational establishments and the industrial workplace.
• Mortise attachment available, order Model No. MA10.
• 16mm(5/8") Capacity chuck, MT2.
• Height: 1580mm.
• Spindle Centre to Column: 165mm.
• Motor Power: 550W.
• Column Diameter: Ø70mm.
• Spindle Travel: 80mm.
• Weight: 51kg.
• This floor standing drill has adjustable tilting table and rise and fall height adjustment by rack and pinion.
• All models are fully CE certificated and approved for use in educational establishments and the industrial workplace.
• Mortise attachment available, order Model No. MA10.
• 16mm(5/8") Capacity chuck, MT2.
• Height: 1580mm.
• Spindle Centre to Column: 165mm.
• Motor Power: 550W.
• Column Diameter: Ø70mm.
• Spindle Travel: 80mm.
• Weight: 51kg.
Spare Parts
Specification & Documents
Base Size: |
420 x 250mm |
Collar Diameter: |
Ø60mm |
Column Diameter: |
Ø70mm |
Drilling Capacity (Chuck Size): |
Ø16mm |
Maximum Distance Spindle to Base: |
1240mm |
Maximum Distance Spindle to Table: |
790mm |
Motor Power: |
550W |
Number of Speeds: |
16 |
Optional Accessories: |
GDMX/KC - Keyless Pillar Drill Chuck 16mm |
Overall Height: |
1580mm |
Speed Range: |
210-3340rpm |
Spindle Centre to Column: |
165mm |
Spindle Nose Taper: |
MT2 |
Spindle Travel: |
80mm |
Supply: |
230V |
Swing: |
330mm |
Nett Weight: |
51kg |
Working Base Surface Size: |
210 x 190mm |
Working Table Surface Size: |
Ø310mm |
Barcode: |
5024209365666 |
Parts Diagram: |
|
Declaration of Conformity: |
|
Instructions: |
