Description

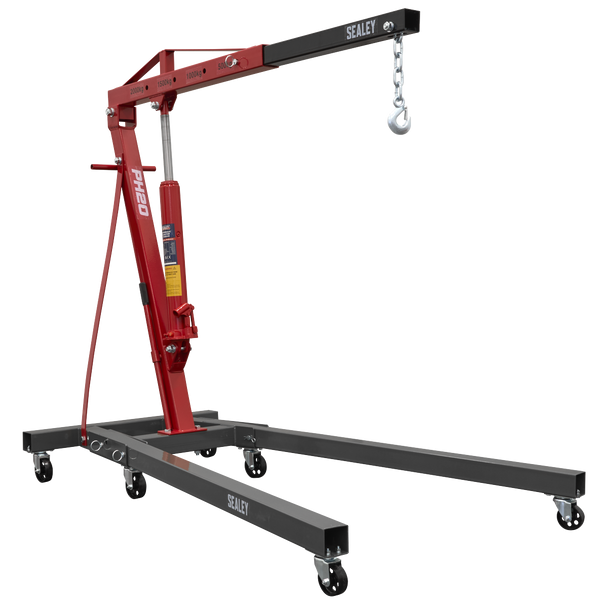

• Lifts 2000kg at 930mm jib extension.
• Folds for easy storage, freeing valuable workshop space when not in use.
• Bottle jack type hydraulic unit for economy.
• Some self-assembly required.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• Folds for easy storage, freeing valuable workshop space when not in use.
• Bottle jack type hydraulic unit for economy.
• Some self-assembly required.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Spare Parts
Specification & Documents
Height Jib Down: |
1440mm |
Height Legs Folded: |
1540mm |
Height of Frame: |
195mm |
Length Legs Extended: |
n/a |
Length of Jib Position 1: |
930mm |
Length of Jib Position 2: |
1110mm |
Length of Jib Position 3: |
1200mm |
Length of Jib Position 4: |
1460mm |
Length of Jib Position 5: |
n/a |
Length: |
1750mm |
Lifting Capacity in Position 1: |
2000kg |
Lifting Capacity in Position 2: |
1500kg |
Lifting Capacity in Position 3: |
1000kg |
Lifting Capacity in Position 4: |
500kg |
Lifting Capacity in Position 5: |
n/a |
Max. Lift Ht at Jib Position 1: |
2060mm |
Max. Lift Ht at Jib Position 2: |
2190mm |
Max. Lift Ht at Jib Position 3: |
2330mm |
Max. Lift Ht at Jib Position 4: |
2490mm |
Max. Lift Ht at Jib Position 5: |
n/a |
Rear Width: |
850mm |
Nett Weight: |
77kg |
Width Front Frame: |
1055mm |
Width Inside Front Frame: |
915mm |
Barcode: |
5024209546362 |
