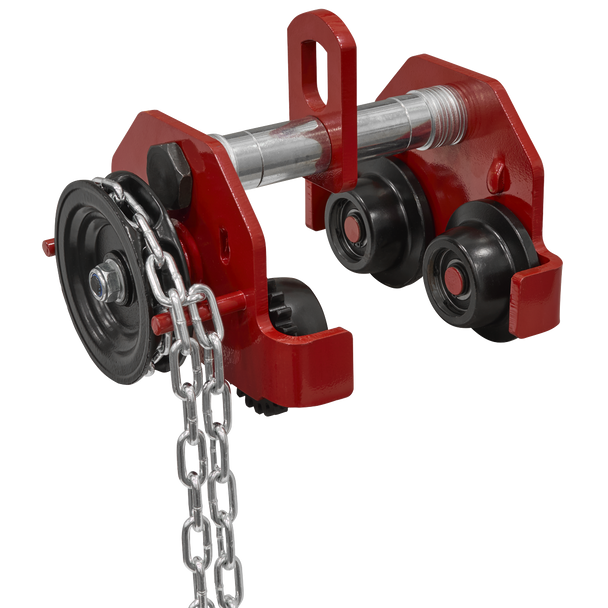

Description
• Suitable for use with our lever hoists or chain blocks.
• Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.
• Geared block trolleys make it easier to move heavy loads along the gantry by using chain rather than manual handling.
• Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.
• Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.
• Geared block trolleys make it easier to move heavy loads along the gantry by using chain rather than manual handling.
• Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.
Spare Parts
Specification & Documents
Specification
| Capacity: | 1000kg |
| Track Width Adjustable Range: | 64-140mm |
| Minimum Curve Radius: | 1000mm |
| A: | 255mm |
| B: | 205mm |
| C: | 135mm |
| D: | 104mm |
| E: | 128mm |
| Weight: | 17kg |
| Minimum Standard I-Beam Dimensions (D x W x Web): | 125 x 75 x 5.5mm |
| Minimum Distance Between Spans: | 2500mm |
| Maximum Standard I-Beam Dimensions (D x W x Web): | 250 x 125 x 7.5mm |
| Maximum Distance Between Spans: | 6000mm |
| Refer to catalogue for diagram.: |
Nett Weight: |
17kg |
Barcode: |
5024209546515 |
Parts Diagram: |
|
Instructions: |
|
Declaration of Conformity: |
