Description
• PROFESSIONAL USE - Heavy-duty steel construction with powder coat paint finish for corrosion resistance.
• MULTIPLE FUNCTIONS - Suitable for use with our lever hoists or chain blocks.
• EASILY FITTED - Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.

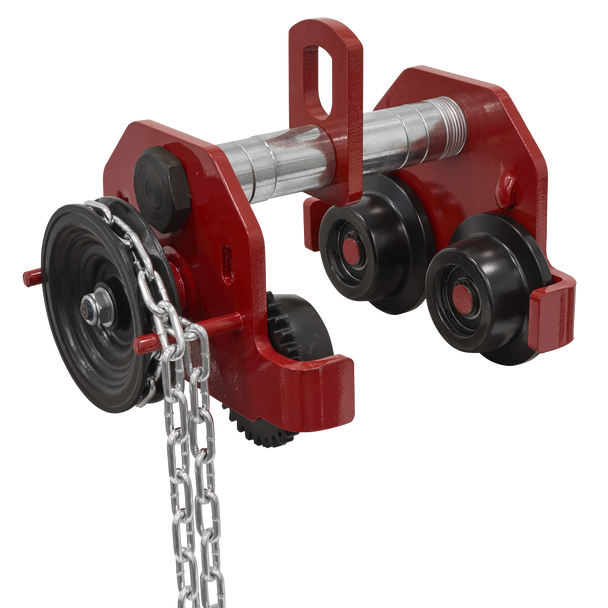

• MANOEUVRABILITY - Geared block trolleys make it easier to move heavy loads along the gantry by using chain rather than manual handling.
• SAFETY FIRST DESIGN - Includes anti-drop plates for added security.
• MULTIPLE FUNCTIONS - Suitable for use with our lever hoists or chain blocks.
• EASILY FITTED - Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.
• MANOEUVRABILITY - Geared block trolleys make it easier to move heavy loads along the gantry by using chain rather than manual handling.
• SAFETY FIRST DESIGN - Includes anti-drop plates for added security.
Spare Parts
Specification & Documents
Specification
| Capacity: | 2000kg |
| Minimum Curve Radius: | 1300mm |
| A: | 255mm |
| B: | 138mm |
| C: | 138mm |
| D: | 102mm |
| E: | 128mm |
| Minimum Distance Between Spans: | 3000mm |
| Maximum Distance Between Spans: | 9000mm |
| Minimum Standard I-Beam Dimensions (D x W x Web): | 180 x 100 x 6mm |
| Maximum Standard I-Beam Dimensions (D x W x Web): | 350 x 150 x 9mm |
| Weight: | 15.8kg |
Nett Weight: |
15.8kg
|
Barcode: |
5054630605505 |
Parts Diagram: |
|
Declaration of Conformity: |
|
Instructions: |
