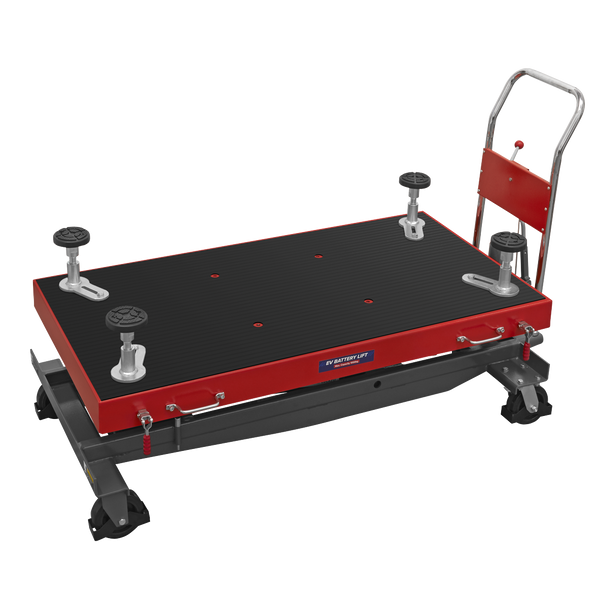

Description
• HIGH LIFT VERSION - 1750mm Maximum platform height.
• ADJUSTABLE TABLETOP - Multiple adjustments can be made for the removal and installation of most EV vehicle batteries.
• FITTED WITH FOUR COMPOSITE WHEELS - Two fixed and two locking castors for easy-rolling.
• ONE-PIECE HYDRAULIC UNIT - Controlled by large rear mounted foot pedal.
• REMOVING AND INSTALLING EV BATTERIES - Designed to assist with EV battery maintenance on electric vehicles.
• MULIPLE APPLICATIONS - Suitable for assisting with many other day-to-day workshop tasks such as removing/installing engines, transmissions, fuel tanks, subframes and can be used as a mobile service bench.
• SAFETY RELEASE MECHANISM - Positioned on handlebar for smooth controlled descent.
• HEAVY ITEM - Extra assistance must be provided at the delivery point to help its safe delivery.
Spare Parts
Specification & Documents
Capacity: |
1000kg |
Maximum Platform Height: |
1750mm |
Minimum Platform Height: |
550mm |
Platform Length: |
1500mm |
Platform Width: |
800mm |
Nett Weight: |
270kg
|
Barcode: |
5054630545399 |
Instructions: |
|
Safety Data Sheet: |
|
Declaration of Conformity: |
|
Parts Diagram: |
