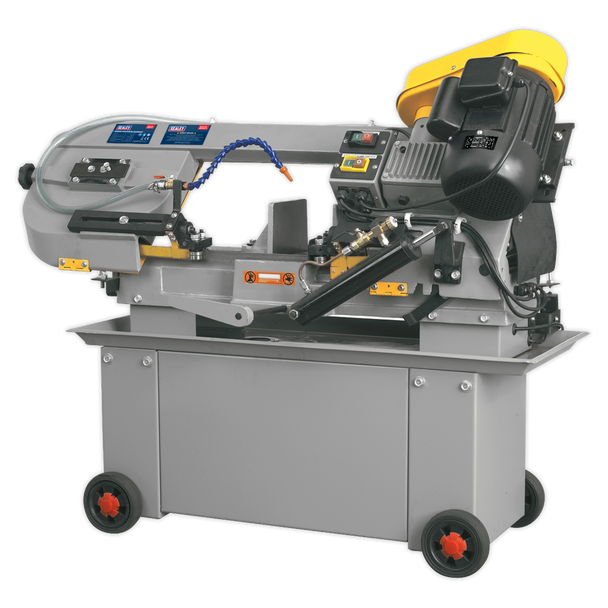

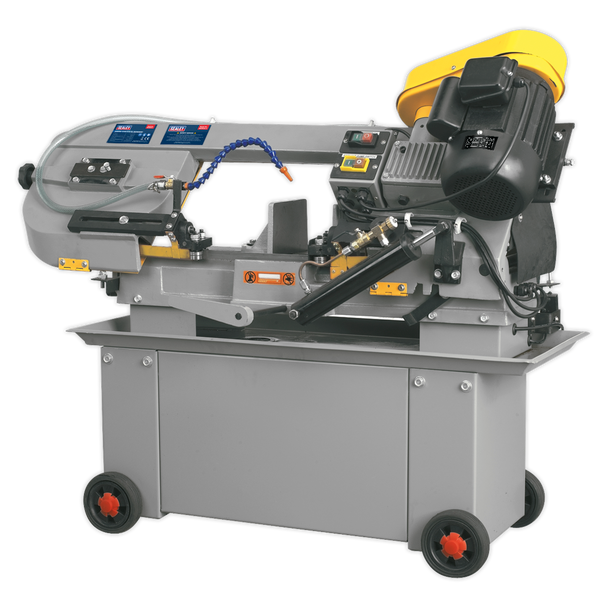

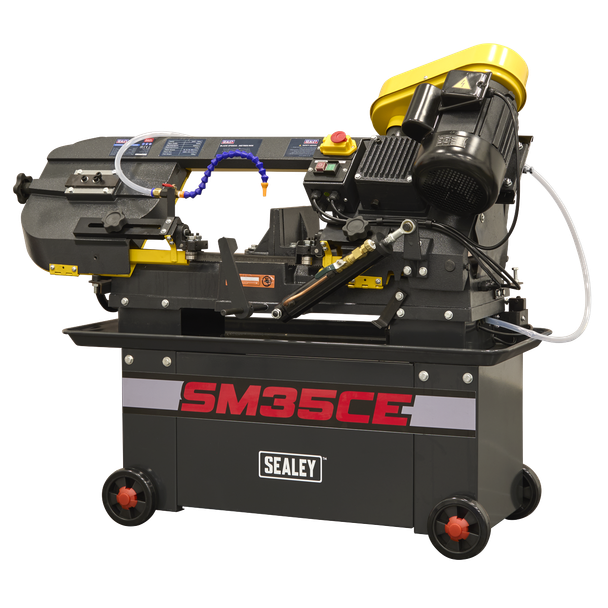

Description
• Manufactured to comply with Safety of Machinery (Safety) Directives 1992 (and amendments) and fully CE approved.
• Saw arm is fitted with hydraulic damping to prevent the arm being dropped onto the workpiece and to ensure smooth cutting performance.
• 300mm Capacity at 90° and 170mm at 45°.
• 550W/230V Motor.
• Coolant fluid system and main power controls are switched on individual circuits.
• Heavy-duty single phase electric motor.
• Supplied with bi-metal blade.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• Saw arm is fitted with hydraulic damping to prevent the arm being dropped onto the workpiece and to ensure smooth cutting performance.
• 300mm Capacity at 90° and 170mm at 45°.
• 550W/230V Motor.
• Coolant fluid system and main power controls are switched on individual circuits.
• Heavy-duty single phase electric motor.
• Supplied with bi-metal blade.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Spare Parts
Specification & Documents
Specification
| Capacity 90° - Round: | Ø180mm |
| Capacity 90° - Square/Rectangular (H x W): | 180 x 300mm |
| Capacity 45° - Round: | Ø100mm |
| Capacity 45° - Square/Rectangular (H x W): | 110 x 170mm |
| Blade Size: | 2360 x 19 x 0.9mm |
| Blade Speeds: | 34, 41, 59, 98m/min |
| Motor Power: | 750W |
| Supply: | 230V |
| Weight: | 138kg |
Nett Weight: |
138kg |
Barcode: |
5024209035644 |
Declaration of Conformity: |
|
Parts Diagram: |
|
Instructions: |
