Description
• INSTALLATION/REMOVAL - Suspension bushes and bearings on passenger and commercial vehicles.
• POWERFUL 18 TONNE HYDRAULIC CYLINDER - Hydraulic pump and hose not included.
• COMPATIBLE - With Sealey Air Hydraulic Pump RE109, Hydraulic Pump RE110 and Hydraulic Hose RE111.
• PROTECTS - The bush uses parallel working tension elements.
• SLEEVE VIEWING WINDOW – To gauge the correct fitment of the bush or bearing.
• APPLICATION: - 26-82mm press sleeves in 2mm increments and an 85/87mm press sleeve.
• INCLUDES - Four force screws and three press sleeve adaptors.

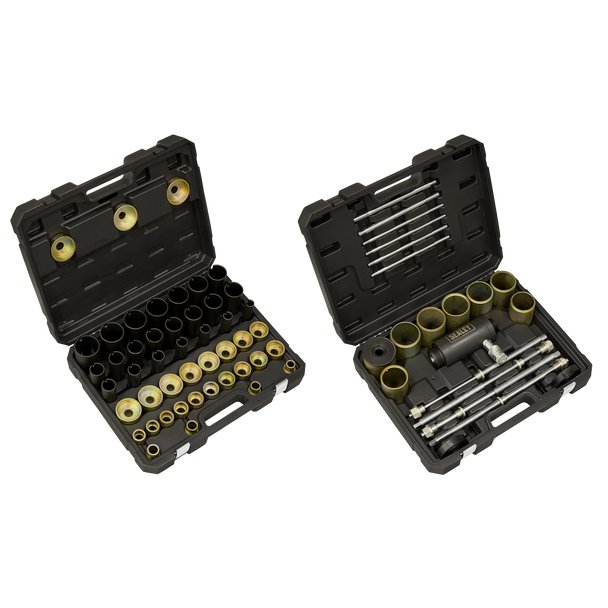

• SUPPLIED IN TWO STORAGE CASES - For easy transportation.
• POWERFUL 18 TONNE HYDRAULIC CYLINDER - Hydraulic pump and hose not included.
• COMPATIBLE - With Sealey Air Hydraulic Pump RE109, Hydraulic Pump RE110 and Hydraulic Hose RE111.
• PROTECTS - The bush uses parallel working tension elements.
• SLEEVE VIEWING WINDOW – To gauge the correct fitment of the bush or bearing.
• APPLICATION: - 26-82mm press sleeves in 2mm increments and an 85/87mm press sleeve.
• INCLUDES - Four force screws and three press sleeve adaptors.
• SUPPLIED IN TWO STORAGE CASES - For easy transportation.
Spare Parts
Specification & Documents
Specification
| Max Capacity: | 25 Tonne |
| Working Capacity: | 18 Tonne |
| 40mm Press Sleeve: | 26, 28, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 74mm |
| 96mm Press Sleeve: | 70, 72, 74, 76, 78, 80, 82, 85/87mm. used in conjunction with a press sleeve adaptor |
| 110mm Press Sleeve: | 26, 28, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68mm |
Force Screw Length: |
Hydraulic Ram Force Screws 450mm x 4, Manual Force Screws 250mm x 4 |
Force Screw Threads: |
Manual Force Screws M10 x 1.5mm x2, M12 x 1.75mm x2 |
Nett Weight: |
39.50kg |
Barcode: |
5054630593390 |
Instructions: |
