Description

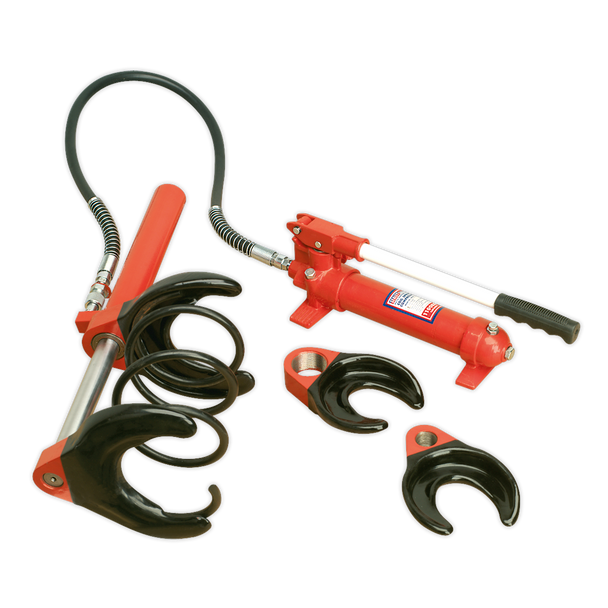

• Hydraulic hand pump unit powers 1000kg capacity ram and yoke assembly.
• Up to 50% quicker than using other ratchet driven spring compressors.
• Equipped with two pairs of spring yokes with plasticized covers to prevent slippage and damage to springs.
• Suitable for springs from Ø80mm ID to Ø165mm OD.
• Up to 50% quicker than using other ratchet driven spring compressors.
• Equipped with two pairs of spring yokes with plasticized covers to prevent slippage and damage to springs.
• Suitable for springs from Ø80mm ID to Ø165mm OD.
Spare Parts
Specification & Documents
Specification
| Maximum Extension: | 240mm |
| Piston Travel: | 240mm |
| Yoke Specification: | |
| Size: | Capacity (Spring Diameter): |
| Small: | Ø80-122mm (x2) |
| Large: | Ø110-165mm (x2) |
Nett Weight: |
18.62kg |
Barcode: |
5024209357418 |
Declaration of Conformity: |
|
Parts Diagram: |
|
Instructions: |
|
Safety Data Sheet: |
