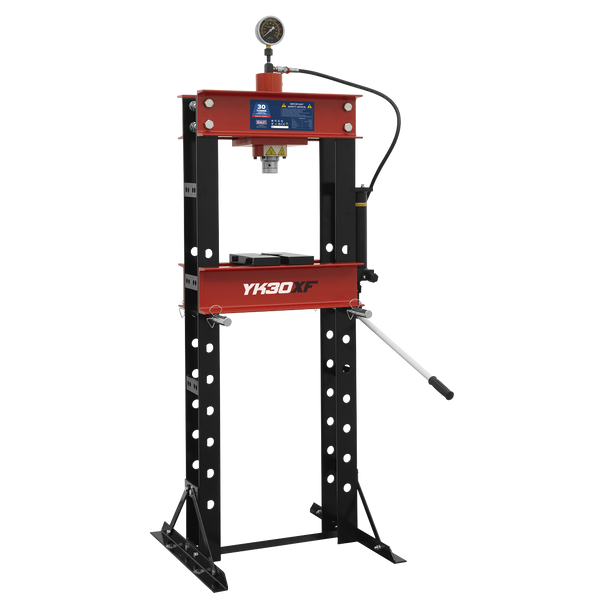

Description
• Steel frame construction with side mounted hydraulic pump unit.
• Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications.
• Includes flat pressing plate/V-blocks.
• Fitted with ram pressure gauge.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications.
• Includes flat pressing plate/V-blocks.
• Fitted with ram pressure gauge.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Spare Parts
Specification & Documents
Bench or Floor Mounting: |
Floor |
Capacity: |
30 Tonne |
Gauge Included: |
Yes |
Lateral Ram Travel: |
200mm |
Maximum Height - Ram to Table: |
1050mm |
Minimum Height - Ram to Table: |
60mm |
Optional Accessories: |
YKPP8 - Press Pin Set |
Overall Height: |
1907mm |
Ram Diameter: |
Ø70mm |
Ram Stroke: |
170mm |
Table Aperture: |
154mm |
Type: |
Hydraulic |
Nett Weight: |
141.5kg |
Working Table Depth: |
284mm |
Working Table Width: |
617mm |
Barcode: |
5054630015717 |
Safety Data Sheet: |
|
Declaration of Conformity: |
|
Parts Diagram: |
|
Instructions: |
