Description
• Forged steel 2-way yoke allows twin or triple leg pulls.
• 10 Tonne Hydraulic power unit with tommy bar.
• Suitable for pulling hubs, flanges, gears and bearings.

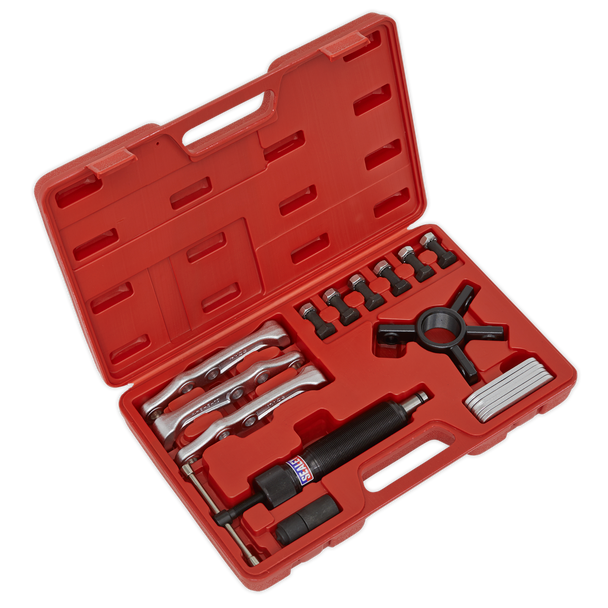

• Three 3-position puller arms and three sets of extension plates, supplied in storage case.
• Hydraulic ram interchangeable with others in series.
• Maximum reach: 250mm.
• 10 Tonne Hydraulic power unit with tommy bar.
• Suitable for pulling hubs, flanges, gears and bearings.
• Three 3-position puller arms and three sets of extension plates, supplied in storage case.
• Hydraulic ram interchangeable with others in series.
• Maximum reach: 250mm.
Specification & Documents
Specification
| Puller Type: | 2-Legged |
| Size: | Spread/Reach: |
| 100mm: | 50-100mm/0-100mm |
| 150mm: | 75-150mm/0-150mm |
| 200mm: | 100-200mm/0-200mm |
| 250mm: | 150-250mm/0-250mm |
| Puller Type: | 3 Legged |
| Size: | Spread/Reach: |
| 100mm: | 50-100mm/0-100mm |
| 150mm: | 75-150mm/0-150mm |
| 200mm: | 100-200mm/0-200mm |
| 250mm: | 150-250mm/0-250mm |
Nett Weight: |
4.74kg |
Barcode: |
5024209354981 |
Safety Data Sheet: |
|
Parts Diagram: |
