Description

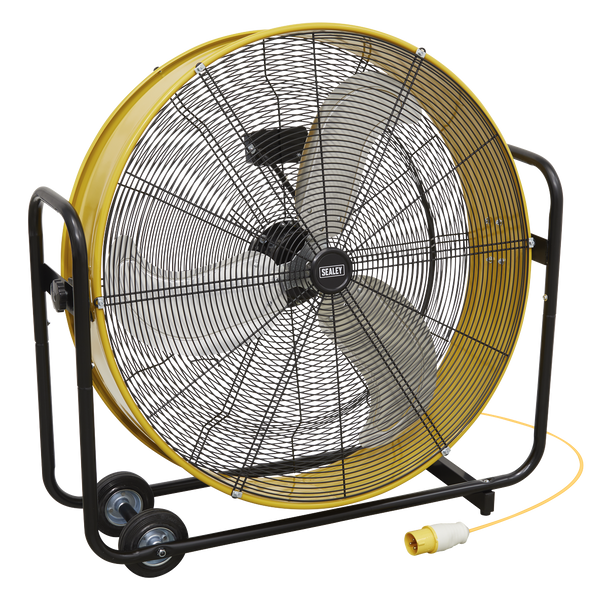

• High velocity industrial 2-speed drum fan suitable for movement of huge volumes of air.
• Robust unit with heavy-duty gauge steel casing, guard and frame.
• Handle, wheels and tilt function cradle stand allow control of airflow where it is needed.
• Carefully balanced and fully guarded blades provide safe operation.
• Maximum Airflow: 284.8m³/min(10057cfm).
• Fitted with 16A 110V plug.
• Suitable for industrial, commercial, agricultural, automotive workshop and on site applications.
• Robust unit with heavy-duty gauge steel casing, guard and frame.
• Handle, wheels and tilt function cradle stand allow control of airflow where it is needed.
• Carefully balanced and fully guarded blades provide safe operation.
• Maximum Airflow: 284.8m³/min(10057cfm).
• Fitted with 16A 110V plug.
• Suitable for industrial, commercial, agricultural, automotive workshop and on site applications.
Spare Parts
Specification & Documents
Specification
| Service Value (SV): | 2.5(m³/min)/W |
| Standby Power Consumption (PSB): | 0W |
| Fan Sound Power Level (LWA): | 78dB(A) |
| Maximum Air Velocity (c): | 2.3m/sec |
Current: |
1.1A |
Fan Diameter: |
Ø760mm(30") |
Maximum Airflow: |
284.8m³/min(10057cfm) |
Power: |
115.8W |
Speed Range: |
800-900rpm |
Speeds: |
2 |
Supply: |
110V |
Nett Weight: |
19.30kg |
Service Value: |
2.5 |
Barcode: |
5054511813227 |
Instructions: |
|
Parts Diagram: |
|
Declaration of Conformity: |
