Description

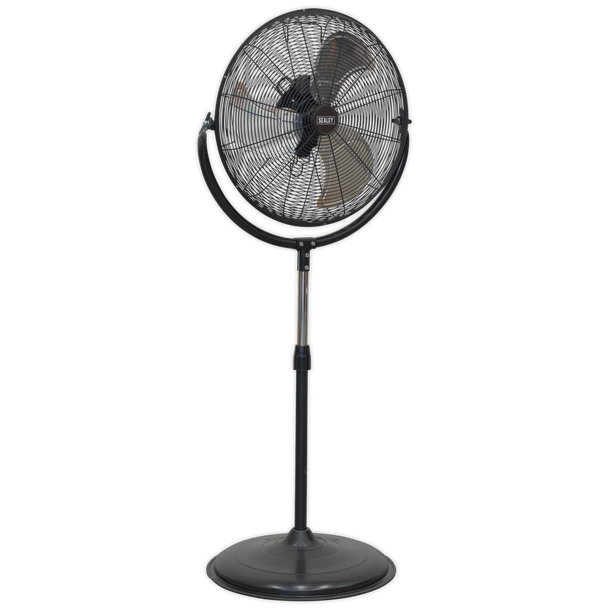

• High velocity fan suitable for movement of huge volumes of air.
• Features 3-speed settings for choice of airflow, tilting blade cradle through 135° angle and height-adjustable stand.
• Adjustable Height: 1300-1410mm.
• Fully guarded blades with large diameter base for safety and added stability.
• Mains cable storage keeps it tidy when not in use.
• Maximum airflow up to 138m³/min.
• Suitable for industrial, commercial, agricultural, workshop and showroom applications.
• Features 3-speed settings for choice of airflow, tilting blade cradle through 135° angle and height-adjustable stand.
• Adjustable Height: 1300-1410mm.
• Fully guarded blades with large diameter base for safety and added stability.
• Mains cable storage keeps it tidy when not in use.
• Maximum airflow up to 138m³/min.
• Suitable for industrial, commercial, agricultural, workshop and showroom applications.
Spare Parts
Specification & Documents
Specification
| Maximum Fan Flow Rate (F): | 88.59 m³/min |
| Fan Power Input (P): | 110.24W |
| Service Value (SV): | 0.80 (m³/min)/W |
| Standby Power Consumption (Psb): | 0.0W |
| Seasonal Electricity Consumption (Q): | 35.28kWh/a |
| Fan Sound Power Level (Lwa): | 70.80dB(A) |
| Maximum Air Velocity (c): | 4.01m/s |
Current: |
0.5A |
Fan Diameter: |
Ø550mm(20") |
Height: |
1300-1410mm |
Maximum Airflow: |
138m³/min(4875cfm) |
Power: |
111W |
Speed Range: |
1100/1250/1350rpm |
Speeds: |
3 |
Supply: |
230V |
Nett Weight: |
9.95kg |
Barcode: |
5051747967571 |
Instructions: |
|
Parts Diagram: |
|
Declaration of Conformity: |
