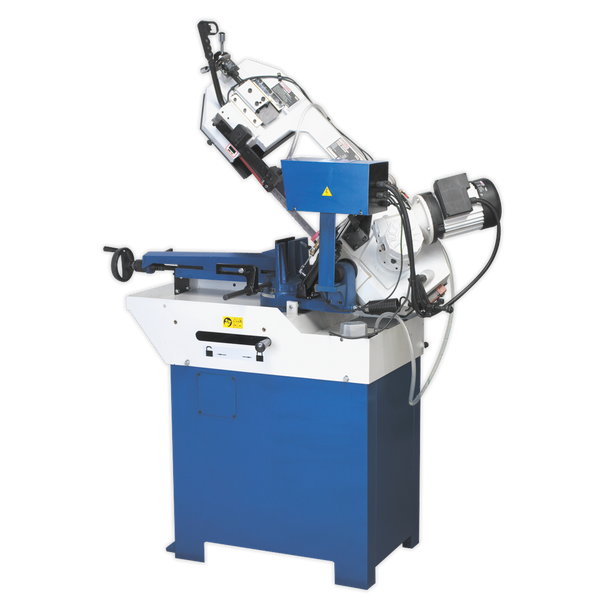

Description
• Manufactured to comply with Safety of Machinery (Safety) Directives 1992 (and amendments) and fully CE approved.
• Saw arms are fitted with hydraulic damping to prevent the arm being dropped onto the workpiece and to ensure smooth cutting performance.
• Maximum Capacity: 90mm at 60°, 150mm at 45° and 255mm at 0°.
• 1100W/230V Motor.
• Bow rotates up to 60° angle allowing workpiece to always sit in a central position.
• Coolant fluid system and main power controls are switched on individual 24V/230V circuits for extra safety.
• Features auto and manual shut-off switches giving the user options of control when in use.
• Heavy-duty single phase electric motor.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• Saw arms are fitted with hydraulic damping to prevent the arm being dropped onto the workpiece and to ensure smooth cutting performance.
• Maximum Capacity: 90mm at 60°, 150mm at 45° and 255mm at 0°.
• 1100W/230V Motor.
• Bow rotates up to 60° angle allowing workpiece to always sit in a central position.
• Coolant fluid system and main power controls are switched on individual 24V/230V circuits for extra safety.
• Features auto and manual shut-off switches giving the user options of control when in use.
• Heavy-duty single phase electric motor.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Spare Parts
Specification & Documents
Specification
| Capacity 60° - Round: | Ø90mm |
| Capacity 60° - Square: | 85mm |
| Capacity 45° - Round: | Ø150mm |
| Capacity 45° - Square: | 145mm |
| Capacity 0° - Square: | 220mm |
| Capacity 0° - Round: | Ø220mm |
| Capacity 0° - Rectangle (H x W): | 255 x 150mm |
| Blade Size: | 2450 x 27 x 0.9mm |
| Blade Speed: | 72m/min |
| Coolant Pump Power: | 25W |
| Motor Power: | 1100W |
| Supply: | 230V |
| Overall Size (W x D x H): | 1720 x 800 x 1810mm |
| Weight: | 218kg |
Nett Weight: |
218kg |
Barcode: |
5051747366503 |
Declaration of Conformity: |
|
Instructions: |
|
Parts Diagram: |
