Description

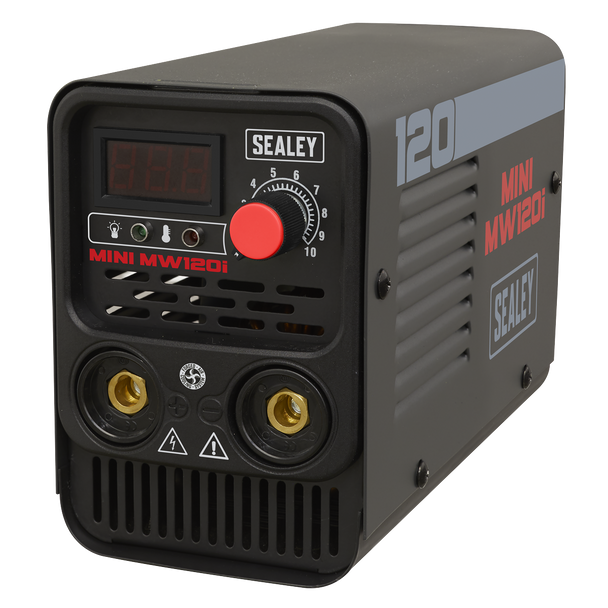

• Ultra-compact and lightweight unit weighing just 4kg approx.
• Portability allows the welder to be taken to the job at hand, ideal for mobile technicians.
• Unit can ARC/MMA weld a variety of rods including rutile, basic and stainless from Ø1.6mm up to Ø3.2mm.
• Features LED display, with thermal cut-out protection, anti-stick, arc force and hot start functions.
• Supplied with 1.6m 12mm² cable with electrode holder and a 1.4m 12mm² earth clamp and cable, both with 10-25 dinse connectors.
• Forced air cooling system.
• Portability allows the welder to be taken to the job at hand, ideal for mobile technicians.
• Unit can ARC/MMA weld a variety of rods including rutile, basic and stainless from Ø1.6mm up to Ø3.2mm.
• Features LED display, with thermal cut-out protection, anti-stick, arc force and hot start functions.
• Supplied with 1.6m 12mm² cable with electrode holder and a 1.4m 12mm² earth clamp and cable, both with 10-25 dinse connectors.
• Forced air cooling system.
Spare Parts
Specification & Documents
Specification
| Welding Current: | 20-120A |
| Duty Cycle: | 100% @ 93A, 60% @ 120A |
| Electrode Capacity: | Ø1.6-3.2mm |
| Absorbed Power: | 3.5kW |
| Supply: | 230V-16A* *Note: To achieve maximum power a 16A supply may be required. |
| Protection: | IP21S |
| Weight: | 3.7Kg |
Nett Weight: |
3.7Kg |
Barcode: |
5054630145704 |
Declaration of Conformity: |
|
Instructions: |
