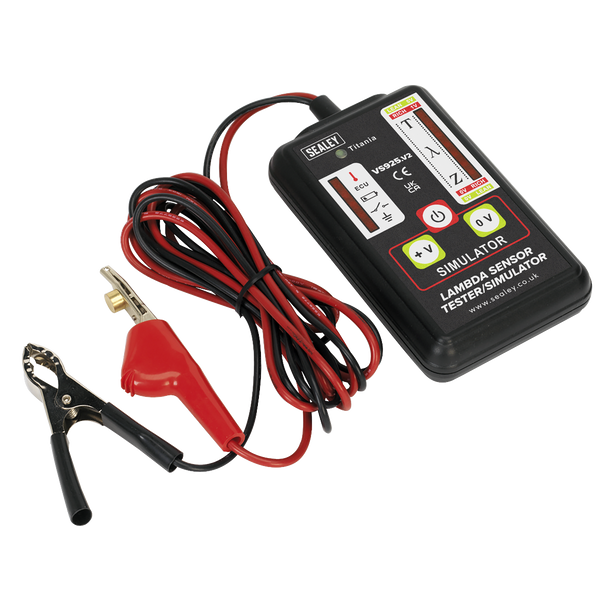

Description
• Tests Zirconia and Titania lambda sensors and ECU.
• Suitable for 1, 2, 3 and 4 wire sensors, heated and unheated.
• LED display shows crossover signal from sensor.
• Simulates rich or lean mixture signals to check ECU response.
• Insulation-piercing clip for quick and easy connection plus display to confirm wire identity.
• Features a low battery indicator and powered by 9V battery (supplied).
• Suitable for 1, 2, 3 and 4 wire sensors, heated and unheated.
• LED display shows crossover signal from sensor.
• Simulates rich or lean mixture signals to check ECU response.
• Insulation-piercing clip for quick and easy connection plus display to confirm wire identity.
• Features a low battery indicator and powered by 9V battery (supplied).
Specification & Documents
Specification
| Battery: | 9V |
| Operating Temperature: | 10°C to 50°C |
| Storage Temperature: | 20°C to 60°C |
| Size (L x W x D): | 147 x 81 x 29mm |
| Weight (main body only): | 250g (inc. battery) |
Nett Weight: |
0.42kg |
Barcode: |
5024209795807 |
Declaration of Conformity: |
|
Instructions: |
|
Safety Data Sheet: |
|
Safety Data Sheet: |
