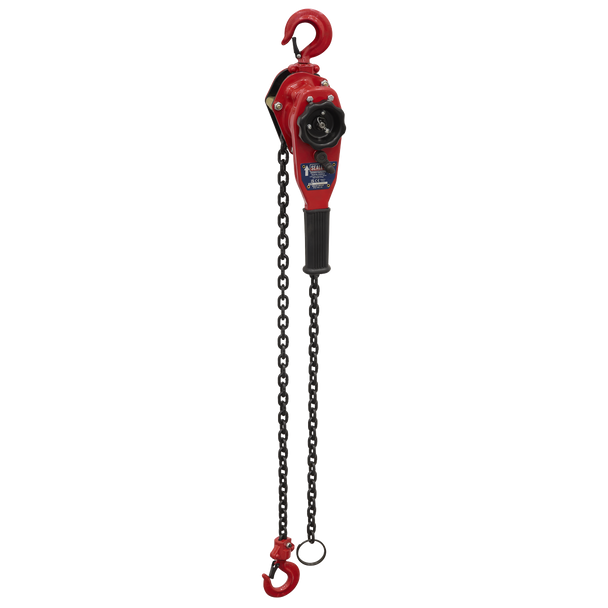

Description
• HEAVY-DUTY GEARING - Rugged construction features drop-forged and heat treated pinion gear with totally enclosed mechanisms.
• DURABLE SAFE OPERATION - Equipped with heavy-duty brake and high quality alloy steel chain.
• SAFE AND ANTI-TWIST - Hooks fitted with safety latches and rotate 360°.
• QUICK AND SIMPLE - Free-chaining feature permits slack in the load chain to be taken up by hand before engaging the ratchet arm.
• PRECISE - Provides total control on the load position.
• DURABLE SAFE OPERATION - Equipped with heavy-duty brake and high quality alloy steel chain.
• SAFE AND ANTI-TWIST - Hooks fitted with safety latches and rotate 360°.
• QUICK AND SIMPLE - Free-chaining feature permits slack in the load chain to be taken up by hand before engaging the ratchet arm.
• PRECISE - Provides total control on the load position.
Spare Parts
Specification & Documents
Capacity: |
1000kg |
Chain Falls: |
1 |
Chain Length: |
1.5m |
Head Room: |
310mm |
Hook Aperture: |
28mm |
Lever Length: |
250mm |
Load Chain Diameter: |
Ø6mm |
Maximum Hook Capacity Ø: |
38mm |
Pull on Lever to Lift Full Load: |
224N |
Size (W x D): |
160 x 172mm |
Nett Weight: |
6.6kg |
Barcode: |
5054630452086 |
Instructions: |
|
Declaration of Conformity: |
