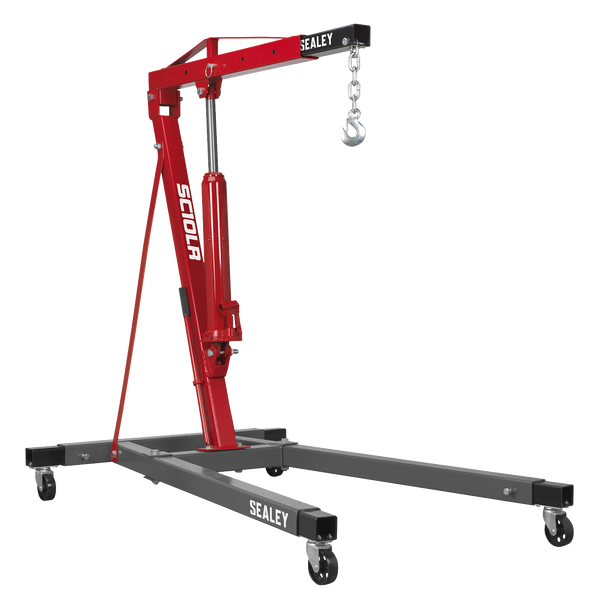

Description
• LONG REACH - Heavy-duty front and rear castors are on extendable legs to give improved stability, particularly when operating at maximum jib extension of 1447mm.
• SUSTAIN VIEW - Side pump for easy access and to maintain sight of the load being lifted. Removeable handle.
• FOLDABLE - Folding design for easy transportation and storing.
• EASY ASSEMBLY - Delivered in knock-down form for reduced freight cost.
• NOTE FOR DELIVERY - This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• SUSTAIN VIEW - Side pump for easy access and to maintain sight of the load being lifted. Removeable handle.
• FOLDABLE - Folding design for easy transportation and storing.
• EASY ASSEMBLY - Delivered in knock-down form for reduced freight cost.
• NOTE FOR DELIVERY - This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Spare Parts
Specification & Documents
Specification
| Standard Leg Length: | 1450mm |
| Extended Leg Length: | 1590mm |
| Extendable Distance: | 140mm |
Height Jib Down: |
1446mm |
Height of Frame: |
180mm |
Length Legs Extended: |
1600mm |
Length of Jib Position 1: |
937mm |
Length of Jib Position 2: |
1107mm |
Length of Jib Position 3: |
1277mm |
Length of Jib Position 4: |
1447mm
|
Length of Jib Position 5: |
n/a
|
Length: |
1450mm |
Lifting Capacity in Position 1: |
1000kg
|
Lifting Capacity in Position 2: |
750kg |
Lifting Capacity in Position 3: |
500kg |
Lifting Capacity in Position 4: |
250kg |
Lifting Capacity in Position 5: |
n/a
|
Max. Lift Ht at Jib Position 1: |
1750mm |
Max. Lift Ht at Jib Position 2: |
1850mm
|
Max. Lift Ht at Jib Position 3: |
1950mm |
Max. Lift Ht at Jib Position 4: |
2050mm
|
Max. Lift Ht at Jib Position 5: |
n/a
|
Rear Width: |
860/1160mm |
Nett Weight: |
81.5kg
|
Width Front Frame: |
690-720mm |
Width Inside Front Frame: |
381/605mm |
Barcode: |
5054630444517 |
