Description

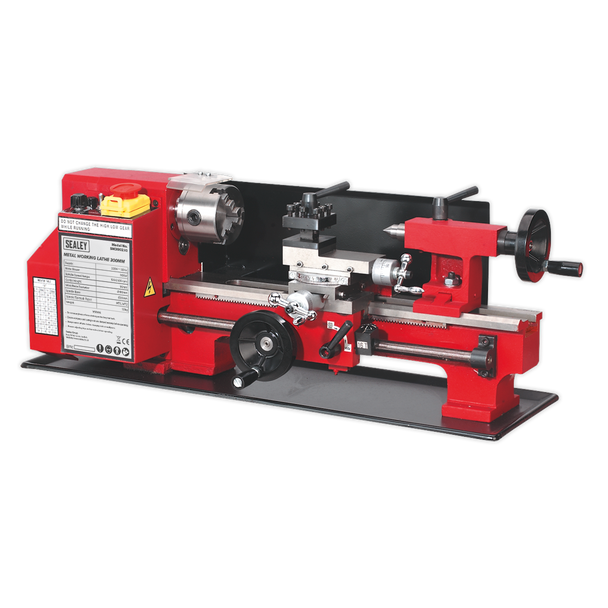

• Precision built metalworking lathe, ideal for the small workshop, professional or home engineer and model maker.
• Powered by a 300W motor this compact unit features variable speed reversible drive and powered cutting facility for right and left-hand threads.
• Supplied with self-centring 3-jaw chuck, 4-way tool post, swarf tray and rear splash guard.
• Supplied with emergency stop button and chuck guard.
• 300mm Between centres.
• An optional stand is available, order Model No. SM3002ST.
• Powered by a 300W motor this compact unit features variable speed reversible drive and powered cutting facility for right and left-hand threads.
• Supplied with self-centring 3-jaw chuck, 4-way tool post, swarf tray and rear splash guard.
• Supplied with emergency stop button and chuck guard.
• 300mm Between centres.
• An optional stand is available, order Model No. SM3002ST.
Spare Parts
Specification & Documents
Specification
| Spindle Speed Range: | 100-2500rpm |
| Distance Between Centres: | 300mm |
| Centre Height: | 90mm |
| Maximum Workpiece Diameter: | Ø180mm |
| Spindle Bore: | Ø20mm |
| Spindle Taper: | MT3 |
| Tailstock Taper: | MT2 |
| Lead Screw: | Metric |
| Dimensions: | 830 x 300 x 300mm |
| Motor Power: | 300W - 230V |
Nett Weight: |
40kg |
Barcode: |
5024209626088 |
Declaration of Conformity: |
|
Instructions: |
|
Parts Diagram: |
