Description

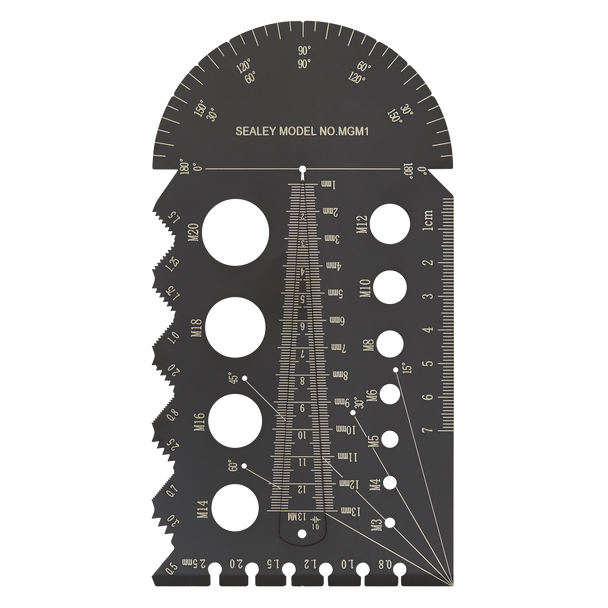

• Stainless steel metric multifunction thread/pitch identification gauge.
• Pitches: 3, 2.5, 2, 1.75, 1.5, 1.25, 1, 0.8, 0.7, 0.5mm.
• Bolt Screw Diameters: M3, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20.
• Wire Gauge: 0.8, 1, 1.2, 1.5, 2, 2.5mm.
• Square: 15°, 30°, 45°, 60°, 90°.
• Bolt Screw Length: 0-7cm.
• Tap/Drill Recommendation: M3-M20.
• Checks the thickness of washers and diameter of electric wire.
• Pitches: 3, 2.5, 2, 1.75, 1.5, 1.25, 1, 0.8, 0.7, 0.5mm.
• Bolt Screw Diameters: M3, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20.
• Wire Gauge: 0.8, 1, 1.2, 1.5, 2, 2.5mm.
• Square: 15°, 30°, 45°, 60°, 90°.
• Bolt Screw Length: 0-7cm.
• Tap/Drill Recommendation: M3-M20.
• Checks the thickness of washers and diameter of electric wire.
Specification & Documents
Specification
| Bolt Screw Diameters: | M3, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20 |
| Pitches: | 3, 2.5, 2, 1.75, 1.5, 1.25, 1, 0.8, 0.7, 0.5mm (tpi) |
| Square: | 15°, 30°, 45°, 60°, 90° |
| Tap/Drill Recommendation: | M3-M20 |
| Wire Gauge: | 0.8, 1.0, 1.2, 1.5, 2.0, 2.5mm |
Nett Weight: |
137.5g |
Barcode: |
5054511956580 |
