Description

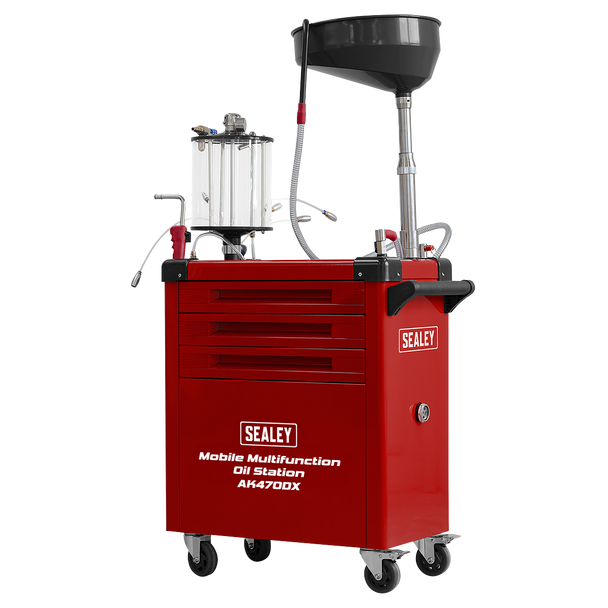

• MANOEUVRABLE - Easily wheeled around the workshop with all your oil change tools in the three drawers.
• COMPREHENSIVE - 61pc Oil filter tool set to remove all types and sizes of oil filters.
• MULTI-SERVICE - Five oil suction probes for extracting used oil from most vehicle dipsticks.
• CLEAR MEASURING TANK - Making extracted oil visible for inspection and measuring before draining into the sump tank.
• LARGE CAPACITY- 70L Sump tank allowing multiple oil changes before needing to empty.
• COMPREHENSIVE - 61pc Oil filter tool set to remove all types and sizes of oil filters.
• MULTI-SERVICE - Five oil suction probes for extracting used oil from most vehicle dipsticks.
• CLEAR MEASURING TANK - Making extracted oil visible for inspection and measuring before draining into the sump tank.
• LARGE CAPACITY- 70L Sump tank allowing multiple oil changes before needing to empty.
Spare Parts
Specification & Documents
Specification
| Air Supply Pressure: | 6-8 bar |
| Oil Discharge Pressure: | 0.6-0.8 bar |
| Working Oil Temperature: | 40-60°C |
| Cup Capacity: | 10L |
| Pan Capacity: | 20L |
| Tank Capacity: | 70L |
| Contents: | Oil Filter Wrenches: 64/65mm - 14 flutes 86/87mm -16 66/67mm -14 84mm-14 73/74mm-14 75/76mm-15 74mm-8 73/74mm-15 72/73mm-14 77mm-12 78-79mm-15 73mm-15 74/75mm-14 86mm-18 88/89mm-15 90/91mm-15 92/93mm-15 93/94mm-15 80mm-12 79/80mm-15 101mm-15 91/92mm-15 89mm-12 64/65mm-14 64/65mm-14 95.5mm-16 91.6mm-16 27mm-6 32mm-6 36mm-6 86.3mm-16 74.4mm-14 Ring Spanner 251mm Small Handcuff Wrench 65-85mm Medium Handcuff Wrench 80-100mm 9x square sockets (5/16" - 3/8" - 7 - 8 - 10 - 11 - 12 - 13 - 14 mm) 7x hex sockets (8 - 9 - 10 - 12 - 13 - 14 - 17 mm) 2x extension bar （3" & 6"） 1x sliding T-bar 1x spline socket M16 1x torx socket T45 1x triangle socket 10 mm 1x socket 10 mm 1x L Wrench 1/2*250mm 1x Wrench 1/2*250mm 1x Wrench 1/2*125mm PVC Oil Suction Wands: 1x Ø8mm 1m long (6.5 L/Min. pumping rate) 1x Ø8mm 800mm long (6.5 L/Min. pumping rate) 1x Ø6mm 1m long (3.7 L/Min. pumping rate) 1x Ø6mm 800mm long (3.7 L/Min. pumping rate) 1x Ø5mm 800mm long (1.9 L/Min. pumping rate) |
| Overall Dimensions (W x D x H) | 805 x 420 x 1410/1525mm (depending on pan height). |
Air Consumption: |
150L/Min |
Minimum/Maximum Air Pressure: |
6-8bar |
Nett Weight: |
83.5kg |
Barcode: |
5054630497520 |
Instructions: |
