Description

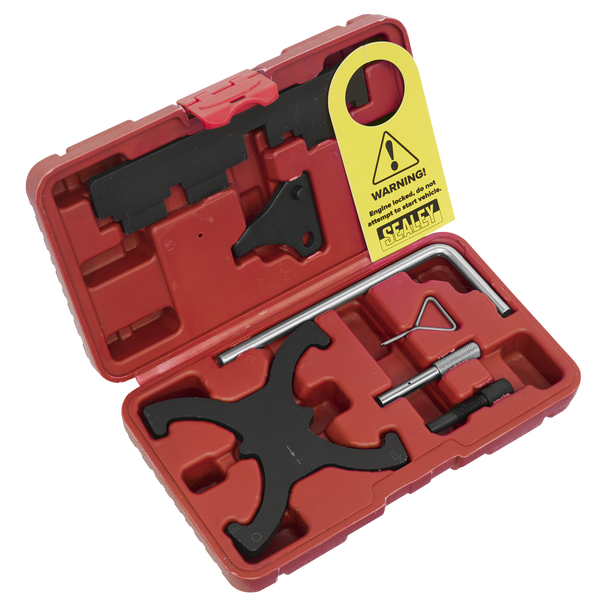

• Contains the tooling required to set and lock the engine along with a tensioner locking pin on Ford 1.6 EcoBoost engines.
• Includes a time-saving crankshaft pulley alignment tool.
• Camshaft locking tool is included which has to be used to set and lock the camshafts into their timing position when the variable valve timing sprockets have to be removed.
• Timing pins included are suitable for Ford 2.0D/2.2D diesel engines.
• Supplied in a storage case with instructions and a warning tag.
• Includes a time-saving crankshaft pulley alignment tool.
• Camshaft locking tool is included which has to be used to set and lock the camshafts into their timing position when the variable valve timing sprockets have to be removed.
• Timing pins included are suitable for Ford 2.0D/2.2D diesel engines.
• Supplied in a storage case with instructions and a warning tag.
Spare Parts
Specification & Documents
Application(s)
| Application(s): | |
| Ford: | B-Max (12-18), C-Max (03-18), Fiesta (08-17), Focus (04-18), Galaxy (06-18), Grand C-Max (10-20), Grand Tourneo Connect (13-15), Ka (16-20), Kuga (08-17), Mondeo (07-18), S-Max (06-18), Tourneo Connect (13-15), Transit Connect (13-16) |
| Jaguar: | XF (11-15) |
| Land Rover: | Freelander 2 TD4 (06-15), Range Rover Evoque (11-15) |
| Volvo: | S60 (11-15), S80 (10-15), V40 (10-15), V60 (11-15), V70 (10-15) |
Associated Tool(s)
Engine Codes
| Engine Code(s): | |
| 1.2: | APKE, B1KE, BK2A, YSKD, YSKE |
| 1.6: | HXDA, HXDB, HXJA, HXJB, IQDA, IQDB, IQDC, IQJA, IQJC, IQJE, JJMA, JQDA, JQDB, JQGA, JQMA, JQMB, JTBA, JTBB, JTDA, JTDB, JTWA, JTWB, KGBA, MUDA, MUDD, PNBA, PNDA, PNDD, RHBA, RVJA, SIDA, U5JA, XTDA, XTDB, B4164T, B4164T2, B4164T3, B4164T4 |
| 2.0D: | D4204T, D4204T2, AZBA, AZBC, AZWA, G6DA, G6DB, G6DC, G6DD, G6DE, G6DF, G6DG, IXDA, KLBA, KLWA, LPBA, QXBA, QXBB, QXWA, QXWB, T7CE, T7CJ, T7CK, T7CL, T7DA, T7DB, T7MA, T7MB, T8CH, T8CD, T8CJ, T8CL, T8DF, TXBA, TXDA, TXDB, TXWA, TYBA, TYDA, TYWA, UFBA, UFDA, UFDB, UFWA, UKBA, UKDA, UKDB, UKWA |
| 2.2TD4/TDCi: | DW12CTED4, DW12BTED/224DT, KNBA, Q4BA |
| 2.2D (Jaguar): | AJi4D/224DT |
OEM Tool(s)
| Engine Code(s): | |
| 1.6: | HXDA, HXDB, HXJA, HXJB, IQDA, IQDB, IQDC, IQJA, IQJC, IQJE, JJMA, JQDA, JQDB, JQGA, JQMA, JQMB, JTBA, JTBB, JTDA, JTDB, JTWA, JTWB, KGBA, MUDA, MUDD, PNBA, PNDA, PNDD, RHBA, RVJA, SIDA, U5JA, XTDA, XTDB, B4164T, B4164T2, B4164T3, B4164T4 |
| 2.0D: | D4204T, D4204T2, AZBA, AZBC, AZWA, G6DA, G6DB, G6DC, G6DD, G6DE, G6DF, G6DG, IXDA, KLBA, KLWA, LPBA, QXBA, QXBB, QXWA, QXWB, T7CE, T7CJ, T7CK, T7CL, T7DA, T7DB, T7MA, T7MB, T8CH, T8CD, T8CJ, T8CL, T8DF, TXBA, TXDA, TXDB, TXWA, TYBA, TYDA, TYWA, UFBA, UFDA, UFDB, UFWA, UKBA, UKDA, UKDB, UKWA |
| 2.2TD4/TDCi: | DW12CTED4, DW12BTED/224DT, KNBA, Q4BA |
| 2.2D (Jaguar): | AJi4D/224DT |
Nett Weight: |
0.80kg |
Barcode: |
5054630092725 |
