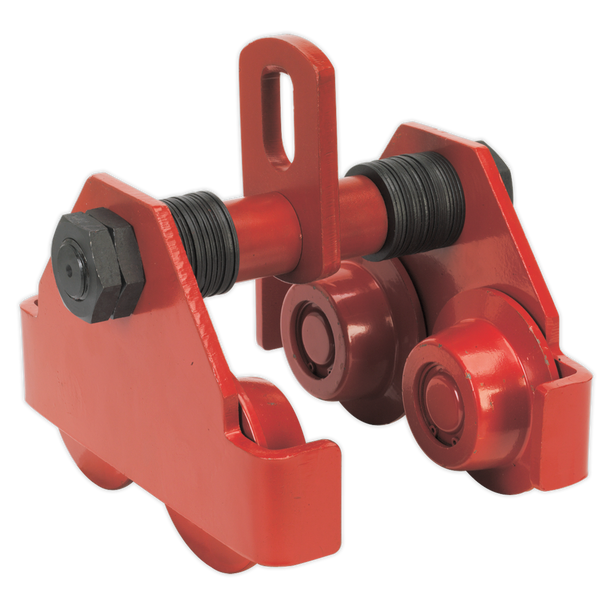

Description
• COMPATIBLE - Suitable for use with our lever hoists or chain blocks.
• APPLICATION - Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.
• ADJUSTABLE - Track width adjusts between 80-168mm.
• WHEEL PROTECTION - Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.
• SMOOTH MOVEMENTS - Four evenly spaced wheels help to make the unit move smoothly along the load bearer.
• APPLICATION - Designed for mounting onto an I-beam or RSJ to allow load to be manoeuvred sideways.
• ADJUSTABLE - Track width adjusts between 80-168mm.
• WHEEL PROTECTION - Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.
• SMOOTH MOVEMENTS - Four evenly spaced wheels help to make the unit move smoothly along the load bearer.
Spare Parts
Specification & Documents
Specification
| Capacity: | 2000kg |
| Track Width Adjustable Range: | 80-168mm |
| Minimum Curve Radius: | 1300mm |
| A: | 255mm |
| B: | 138mm |
| C: | 138mm |
| D: | 102mm |
| E: | 128mm |
| Weight: | 13kg |
| Minimum Standard I-Beam Dimensions (D x W x Web): | 180 x 100 x 6mm |
| Maximum Distance Between Spans: | 3000mm |
| Maximum Standard I-Beam Dimensions (D x W x Web): | 350 x 150 x 9mm |
| Maximum Distance Between Spans: | 9000mm |
| Refer to catalogue for diagram: |
Nett Weight: |
13kg |
Barcode: |
5054630626685 |
Declaration of Conformity: |
|
Instructions: |
|
Parts Diagram: |
