Description

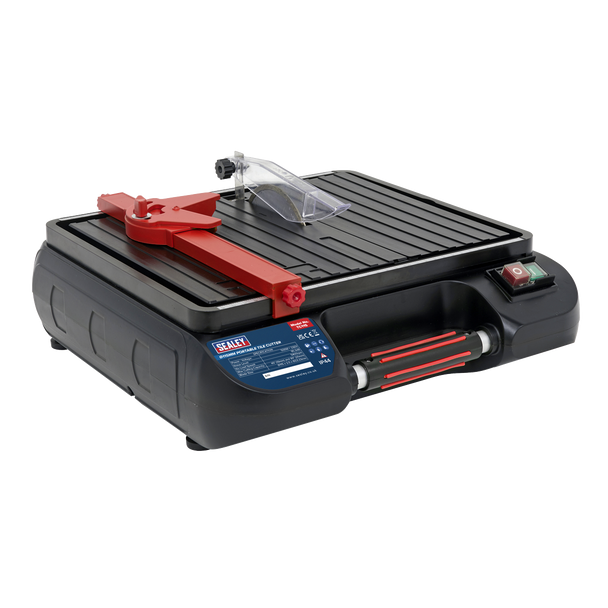

• Lightweight portable wet tile cutter.
• Powered by 500W - 230V electric motor.
• The table tilts from 0°-45° and is fitted with adjustable parallel cutting fence.
• Also includes 45° cutting guide.
• Supplied with Ø115mm continuous rimmed diamond cutting blade, suitable for glazed ceramic, porcelain, quarry, slate and natural stone tiles.
• Incorporates 3.5L capacity water reservoir for blade cooling.
• Fitted with handy storage area for 1.8m of cable and 3-pin plug.
• Powered by 500W - 230V electric motor.
• The table tilts from 0°-45° and is fitted with adjustable parallel cutting fence.
• Also includes 45° cutting guide.
• Supplied with Ø115mm continuous rimmed diamond cutting blade, suitable for glazed ceramic, porcelain, quarry, slate and natural stone tiles.
• Incorporates 3.5L capacity water reservoir for blade cooling.
• Fitted with handy storage area for 1.8m of cable and 3-pin plug.
Spare Parts
Specification & Documents
Replacement Blades: |
TC115.B |
Speed: |
5400rpm |
Table Size: |
300 x 360mm |
Nett Weight: |
4.7kg |
Motor Power: |
500W - 230V |
Maximum Cutting Depth - 90°: |
25mm |
Maximum Cutting Depth - 45°: |
16mm |
Bore: |
Ø22.23mm |
Blade Size(s): |
Ø115mm |
Barcode: |
5054511977851 |
Instructions: |
|
Declaration of Conformity: |
|
Parts Diagram: |
