Description

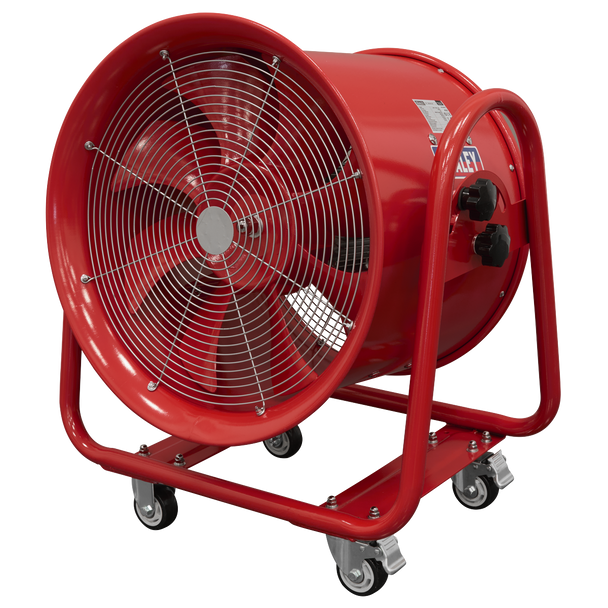

• VOLUME VENTILATION - Ideal for use where high volume clean air delivery is required. Airflow: 9900m³/hr(5814cfm).
• DIVERSE USAGE - Can be used across multiple industries including but not exclusive to: Marine, roof spaces and building sites, cable/pipe ducts and workshops.
• DUCTING SUPPLIED - 5m Ducting is supplied with this product. 10m Ducting is available but not included (VEN500AK2).
• WHEEL MOUNTED - Lightweight with four castor wheels making it easily portable.
• DIVERSE USAGE - Can be used across multiple industries including but not exclusive to: Marine, roof spaces and building sites, cable/pipe ducts and workshops.
• DUCTING SUPPLIED - 5m Ducting is supplied with this product. 10m Ducting is available but not included (VEN500AK2).
• WHEEL MOUNTED - Lightweight with four castor wheels making it easily portable.
Spare Parts
Specification & Documents
Specification
| Overall Efficiency (n): | 35.94% |
| Measurement Category: | C |
| Efficiency Category: | Static |
| Efficiency Grade: | 40 |
Airflow: |
9900m³/hr(5814cfm) - 165m³/min |
Fan Diameter: |
Ø500mm |
Fan Speed: |
1400rpm |
Maximum Airflow: |
9900m³/hr(5,814cfm), 165m³/min |
Noise Level: |
74dB(A) |
Note: |
RPM - 1420 r/min |
Power: |
1100W |
Replacement Parts: |
VEN500AK1/VEN500AK2 |
Static Pressure: |
4.5mbar |
Supply: |
230V |
Nett Weight: |
52kg |
Maximum Air Velocity: |
14m/s |
Barcode: |
5054630457029 |
Instructions: |
|
Parts Diagram: |
|
Declaration of Conformity: |
