Description

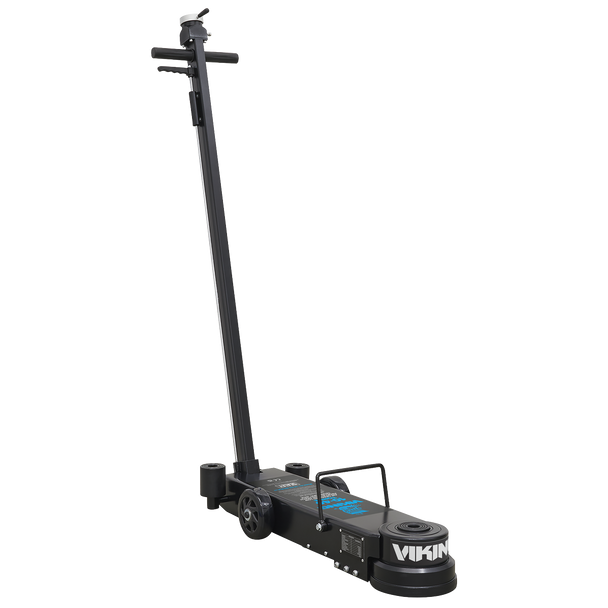

• HEAVY-DUTY HYDRAULICS - powerful and reliable this 3-stage jack is ideal for workshop or roadside use.
• AIR OPERATED - takes the effort out of lifting heavy plant, tractors and commercial vehicles.
• ACCESSORIES INCLUDED - supplied with 45mm and 75mm extensions.
• LOW ENTRY/LONG REACH - easier access to hard to reach jacking points.
• MAXIMUM CAPACITY - 40 Tonne.
• 3 Year Guarantee*.
• AIR OPERATED - takes the effort out of lifting heavy plant, tractors and commercial vehicles.
• ACCESSORIES INCLUDED - supplied with 45mm and 75mm extensions.
• LOW ENTRY/LONG REACH - easier access to hard to reach jacking points.
• MAXIMUM CAPACITY - 40 Tonne.
• 3 Year Guarantee*.
Spare Parts
Specification & Documents
Air Consumption: |
11.5cfm |
Capacity: |
40 Tonne |
Chassis Length: |
830mm |
Extensions: |
45/75mm |
Maximum Length: |
2210mm |
Minimum Saddle Height: |
130mm |
Overall Width: |
282mm |
Piston Stroke: |
159mm |
Screw Extension: |
n/a |
Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne): |
302/40 |
Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne): |
347/20 |
Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne): |
396/10 |
Nett Weight: |
54kg |
Width without Wheels: |
179mm |
Working Pressure: |
116-174psi |
Barcode: |
5054630309038 |
Safety Data Sheet: |
|
Declaration of Conformity: |
|
Parts Diagram: |
