Description

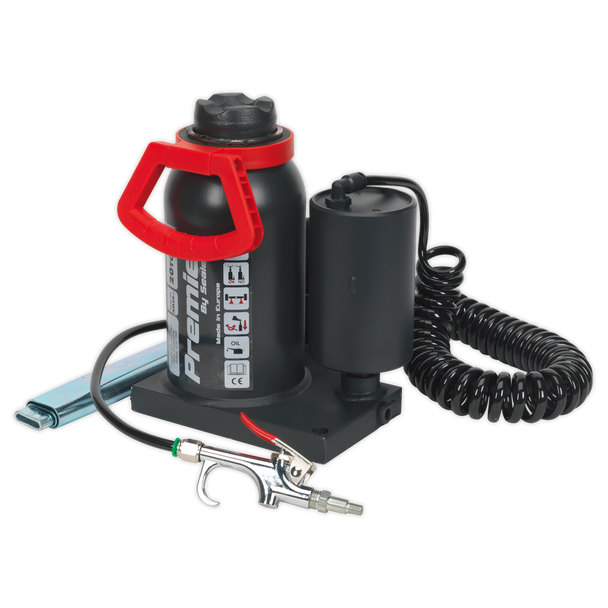

• Air/Hydraulic bottle jack capable of both air assisted or manual operation.
• Fitted with safety overload valve and manufactured in the EU.
• All steel, one-piece base, reservoir and pump cylinder design gives added strength.
• Telescopic pump handle for easy storage.
• 90° Rotating pump.
• Moulded carry handles incorporating storage for the pump handle.
• Fully serviceable ram piston with extension screw.
• Service kit readily available.
• 3 Year Guarantee*.
• Fitted with safety overload valve and manufactured in the EU.
• All steel, one-piece base, reservoir and pump cylinder design gives added strength.
• Telescopic pump handle for easy storage.
• 90° Rotating pump.
• Moulded carry handles incorporating storage for the pump handle.
• Fully serviceable ram piston with extension screw.
• Service kit readily available.
• 3 Year Guarantee*.
Spare Parts
Specification & Documents
Air Consumption: |
1cfm |
Capacity: |
20 Tonne |
Chassis Length: |
n/a |
Maximum Height: |
447mm |
Minimum Height: |
234mm |
Piston Stroke: |
138mm |
Screw Extension: |
75mm |
Nett Weight: |
15.5kg |
Working Pressure: |
100-140psi |
Barcode: |
5024209232364 |
Declaration of Conformity: |
|
Parts Diagram: |
|
Instructions: |
|
Safety Data Sheet: |
