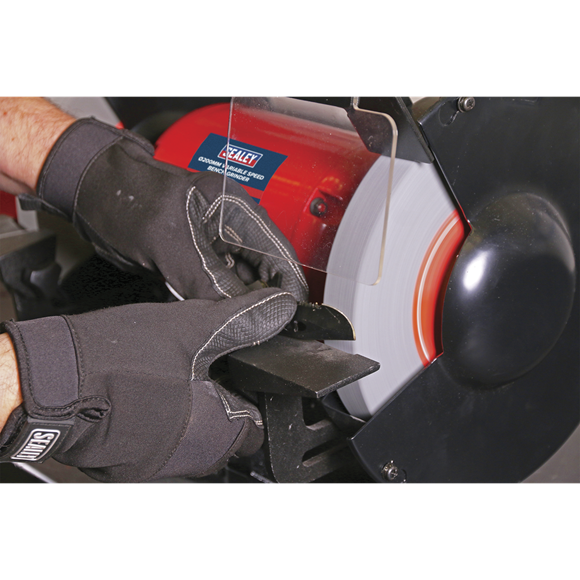

200mm Bench Grinder with Variable Speed 550W/230V
Model No. BG200WVS
|
|
|||||||||||||||
|
|
|||||||||||||||
- Induction motor suitable for general use.
- Supplied with stone guards attached, adjustable eye shields and spark arrestors.
- Substantial tool rests, one with angled cut-out assisting effective tool sharpening.
- Variable speed allows for better control of grinding and sharpening.
- Integral coolant tray for convenient cooling of sharpened/ground item.
Nett Weight:
17.7kg
Stone Size:
Ø200mm (x2)
Motor Power:
550W
Supply:
230V
Axle Diameter:
Ø16mm
No-Load Speed Range:
2000-2850rpm
Weight:
17.7kg
Model No.
Description
List Price (Exc. VAT)
List Price (Inc. VAT)
B/6203
Bearing 6203
Name: Bearing 6203
Model No: B/6203
£12.49
£14.99
BG200/15
Grinding Stone Ø200 x 25mm 16mm Bore A60P Fine
Name: Grinding Stone Ø200 x 25mm 16mm Bore A60P Fine
Model No: BG200/15
£20.95
£25.14
BG200/16
Grinding Stone Ø200 x 25mm 16mm Bore A36Q Coarse
Name: Grinding Stone Ø200 x 25mm 16mm Bore A36Q Coarse
Model No: BG200/16
£20.95
£25.14
BG200WVS.01
Phillips screw (c/w washer) m5x16
Name: Phillips screw (c/w washer) m5x16
Model No: BG200WVS.01
£1.49
£1.79
BG200WVS.02
Rubber foot
Name: Rubber foot
Model No: BG200WVS.02
£1.49
£1.79
BG200WVS.03
Base plate
Name: Base plate
Model No: BG200WVS.03
£1.49
£1.79
BG200WVS.04
PCB,Circuit board size- 72 x 62mm
Name: PCB,Circuit board size- 72 x 62mm
Model No: BG200WVS.04
£40.99
£49.19
BG200WVS.05
Self tapping screw st2.9x5
Name: Self tapping screw st2.9x5
Model No: BG200WVS.05
£1.49
£1.79
BG200WVS.06
Circuit board cover
Name: Circuit board cover
Model No: BG200WVS.06
£1.49
£1.79
BG200WVS.07
Phillips screw (c/w spring washer) m8x22
Name: Phillips screw (c/w spring washer) m8x22
Model No: BG200WVS.07
£1.49
£1.79
BG200WVS.09
Coolant tray clip
Name: Coolant tray clip
Model No: BG200WVS.09
£1.49
£1.79
BG200WVS.10
Phillips screw m4x8
Name: Phillips screw m4x8
Model No: BG200WVS.10
£1.49
£1.79
BG200WVS.11
Coolant tray
Name: Coolant tray
Model No: BG200WVS.11
£1.99
£2.39
BG200WVS.12
Phillips screw (c/w spring+flat washer) m4x8
Name: Phillips screw (c/w spring+flat washer) m4x8
Model No: BG200WVS.12
£1.49
£1.79
BG200WVS.13
Capacitor 20uf 450v
Name: Capacitor 20uf 450v
Model No: BG200WVS.13
£9.99
£11.99
BG200WVS.14
Base
Name: Base
Model No: BG200WVS.14
£25.99
£31.19
BG200WVS.15
Strain relief
Name: Strain relief
Model No: BG200WVS.15
£1.49
£1.79
BG200WVS.16
Cord clip
Name: Cord clip
Model No: BG200WVS.16
£1.49
£1.79
BG200WVS.17
Cord clip plate
Name: Cord clip plate
Model No: BG200WVS.17
£1.49
£1.79
BG200WVS.18
Phillips screw m4x16
Name: Phillips screw m4x16
Model No: BG200WVS.18
£1.49
£1.79
BG200WVS.20
Retaining ring
Name: Retaining ring
Model No: BG200WVS.20
£1.49
£1.79
BG200WVS.21
Cord & plug
Name: Cord & plug
Model No: BG200WVS.21
£1.49
£1.79
BG200WVS.22
Toothed lock washer (d4)
Name: Toothed lock washer (d4)
Model No: BG200WVS.22
£1.49
£1.79
BG200WVS.23
Cord bushing
Name: Cord bushing
Model No: BG200WVS.23
£1.49
£1.79
BG200WVS.24
Speed controller
Name: Speed controller
Model No: BG200WVS.24
£2.99
£3.59
BG200WVS.25
Fixing plate for rocker switch
Name: Fixing plate for rocker switch
Model No: BG200WVS.25
£1.49
£1.79
BG200WVS.26
Phillips screw m5x10
Name: Phillips screw m5x10
Model No: BG200WVS.26
£1.49
£1.79
BG200WVS.27
Rotary knob washer
Name: Rotary knob washer
Model No: BG200WVS.27
£1.49
£1.79
BG200WVS.28
Screw
Name: Screw
Model No: BG200WVS.28
£1.49
£1.79
BG200WVS.29
Knob, Speed Control, OD: 18mm L: 20mm, 6mm Female Fitting (c
Name: Knob, Speed Control, OD: 18mm L: 20mm, 6mm Female Fitting (c
Model No: BG200WVS.29
£1.99
£2.39
BG200WVS.30
Guard for rocker switch
Name: Guard for rocker switch
Model No: BG200WVS.30
£1.49
£1.79
BG200WVS.31
Phillips screw m3x10
Name: Phillips screw m3x10
Model No: BG200WVS.31
£1.49
£1.79
BG200WVS.32
Switch, rocker with lock - 12A/250V - 02A1712
Name: Switch, rocker with lock - 12A/250V - 02A1712
Model No: BG200WVS.32
£7.49
£8.99
BG200WVS.33
Lock key for rocker switch
Name: Lock key for rocker switch
Model No: BG200WVS.33
£1.49
£1.79
BG200WVS.34
Flange
Name: Flange
Model No: BG200WVS.34
£4.99
£5.99
BG200WVS.37
Guard cover, left
Name: Guard cover, left
Model No: BG200WVS.37
£10.49
£12.59
BG200WVS.38
Phillips screw (spring+flat washer) m5x18
Name: Phillips screw (spring+flat washer) m5x18
Model No: BG200WVS.38
£1.49
£1.79
BG200WVS.39
Phillips screw m5x160
Name: Phillips screw m5x160
Model No: BG200WVS.39
£1.49
£1.79
BG200WVS.40
Flat washer (d5)
Name: Flat washer (d5)
Model No: BG200WVS.40
£1.49
£1.79
BG200WVS.41
Rotor cover (l/s)
Name: Rotor cover (l/s)
Model No: BG200WVS.41
£1.49
£1.79
BG200WVS.42
Wave washer (d40)
Name: Wave washer (d40)
Model No: BG200WVS.42
£1.49
£1.79
BG200WVS.44
Stator
Name: Stator
Model No: BG200WVS.44
£1.49
£1.79
BG200WVS.45
Rotor
Name: Rotor
Model No: BG200WVS.45
£44.49
£53.39
BG200WVS.46
Rotor cover (r/s)
Name: Rotor cover (r/s)
Model No: BG200WVS.46
£1.49
£1.79
BG200WVS.47
Sensor
Name: Sensor
Model No: BG200WVS.47
£3.49
£4.19
BG200WVS.48
Phillips screw (c/w washer) m2.5x8
Name: Phillips screw (c/w washer) m2.5x8
Model No: BG200WVS.48
£1.49
£1.79
BG200WVS.49
Plate
Name: Plate
Model No: BG200WVS.49
£1.49
£1.79
BG200WVS.50
Screw m5x6
Name: Screw m5x6
Model No: BG200WVS.50
£1.49
£1.79
BG200WVS.51
Guard cover, right
Name: Guard cover, right
Model No: BG200WVS.51
£1.49
£1.79
BG200WVS.52
Hex bolt m8x12
Name: Hex bolt m8x12
Model No: BG200WVS.52
£1.49
£1.79
BG200WVS.53
Flat washer 8mm
Name: Flat washer 8mm
Model No: BG200WVS.53
£1.49
£1.79
BG200WVS.55
Eyeshield support
Name: Eyeshield support
Model No: BG200WVS.55
£1.49
£1.79
BG200WVS.56
Eyeshield, Rectangular 115 x 80 x 2mm
Name: Eyeshield, Rectangular 115 x 80 x 2mm
Model No: BG200WVS.56
£2.99
£3.59
BG200WVS.57
Hex bolt (c/w spring+flat washer) m5x10
Name: Hex bolt (c/w spring+flat washer) m5x10
Model No: BG200WVS.57
£1.49
£1.79
BG200WVS.58
Phillips screw m4x12
Name: Phillips screw m4x12
Model No: BG200WVS.58
£1.49
£1.79
BG200WVS.59
Shield, right side
Name: Shield, right side
Model No: BG200WVS.59
£2.99
£3.59
BG200WVS.60
Screw m6x16
Name: Screw m6x16
Model No: BG200WVS.60
£1.49
£1.79
BG200WVS.61
Phillips screw (c/w spring washer) m5x10
Name: Phillips screw (c/w spring washer) m5x10
Model No: BG200WVS.61
£1.49
£1.79
BG200WVS.62
Right guard
Name: Right guard
Model No: BG200WVS.62
£14.49
£17.39
BG200WVS.63
Work rest, right
Name: Work rest, right
Model No: BG200WVS.63
£4.49
£5.39
BG200WVS.64
Moveable work rest, right
Name: Moveable work rest, right
Model No: BG200WVS.64
£5.99
£7.19
BG200WVS.66
Knob, Work Rest, Plastic, OD: 25mm, M5x17mm Threaded Male Fi
Name: Knob, Work Rest, Plastic, OD: 25mm, M5x17mm Threaded Male Fi
Model No: BG200WVS.66
£1.49
£1.79
BG200WVS.68
Guard cover, left
Name: Guard cover, left
Model No: BG200WVS.68
£10.49
£12.59
BG200WVS.69
Left guard
Name: Left guard
Model No: BG200WVS.69
£14.49
£17.39
BG200WVS.71
Work rest, left
Name: Work rest, left
Model No: BG200WVS.71
£4.49
£5.39
BG200WVS.72
Moveable work rest, left
Name: Moveable work rest, left
Model No: BG200WVS.72
£3.49
£4.19
BG200WVS.73
Flat washer (d6)
Name: Flat washer (d6)
Model No: BG200WVS.73
£1.49
£1.79
BG200WVS.74
Shield, left side
Name: Shield, left side
Model No: BG200WVS.74
£2.99
£3.59
BG200WVS.75
Wire clip plate
Name: Wire clip plate
Model No: BG200WVS.75
£4.49
£5.39
NLN5.S
Nyloc Nut M5 Zinc
Name: Nyloc Nut M5 Zinc
Model No: NLN5.S
£0.49
£0.59
NLN6.S
Nyloc Nut M6 Zinc
Name: Nyloc Nut M6 Zinc
Model No: NLN6.S
£0.49
£0.59
SN16.S
Steel Nut M16 Zinc
Name: Steel Nut M16 Zinc
Model No: SN16.S
£0.99
£1.19
SN4.S
Steel Nut M4 Zinc
Name: Steel Nut M4 Zinc
Model No: SN4.S
£0.49
£0.59
SN5.S
Steel Nut M5 Zinc
Name: Steel Nut M5 Zinc
Model No: SN5.S
£0.49
£0.59
- Induction motor suitable for general use.
- Supplied with stone guards attached, adjustable eye shields and spark arrestors.
- Substantial tool rests, one with angled cut-out assisting effective tool sharpening.
- Variable speed allows for better control of grinding and sharpening.
- Integral coolant tray for convenient cooling of sharpened/ground item.
Nett Weight:
17.7kg
Stone Size:
Ø200mm (x2)
Motor Power:
550W
Supply:
230V
Axle Diameter:
Ø16mm
No-Load Speed Range:
2000-2850rpm
Weight:
17.7kg
