Description

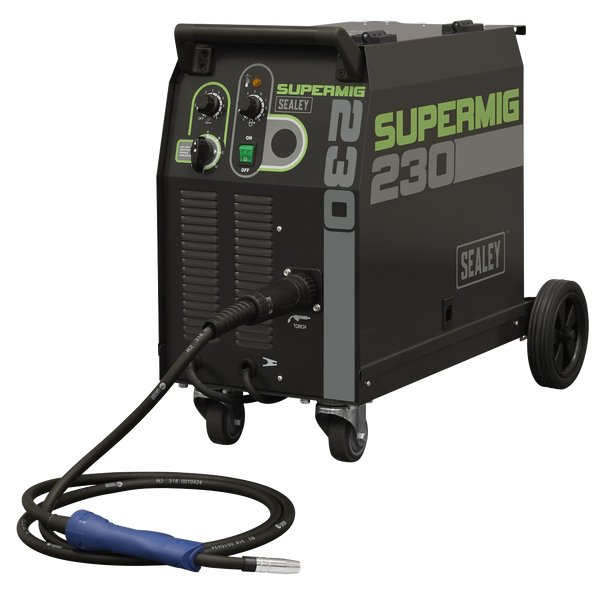

• SEALEY SUPERMIG® - Compact, gas/gasless welder with 230A maximum performance.
• HIGH OUTPUT TRANSFORMER – Heavy-duty high output transformer, with 30-230A welding current.
• FORCED AIR COOLING – To maximise duty cycle performance.
• BOTH GAS/GASLESS OPERATION – Unit is supplied set up in gas mode but can easily be switched to gasless mode by a simple change of polarity. Use in gasless mode will require spool of flux cored wire.
• EURO NON-LIVE TORCH – Supplied with 3m Binzel® non-live Euro torch reducing accidental arcing and is comfortable in the hand, ensuring a steadier weld bead.
• ACCESSORIES INCLUDED – Includes industrial gas regulator 2.4m earth cable with clamp, 0.6mm contact tip, 1.4m gas hose, hose clamp (x2).
• 3 YEAR GUARANTEE*.
• HIGH OUTPUT TRANSFORMER – Heavy-duty high output transformer, with 30-230A welding current.
• FORCED AIR COOLING – To maximise duty cycle performance.
• BOTH GAS/GASLESS OPERATION – Unit is supplied set up in gas mode but can easily be switched to gasless mode by a simple change of polarity. Use in gasless mode will require spool of flux cored wire.
• EURO NON-LIVE TORCH – Supplied with 3m Binzel® non-live Euro torch reducing accidental arcing and is comfortable in the hand, ensuring a steadier weld bead.
• ACCESSORIES INCLUDED – Includes industrial gas regulator 2.4m earth cable with clamp, 0.6mm contact tip, 1.4m gas hose, hose clamp (x2).
• 3 YEAR GUARANTEE*.
Spare Parts
Specification & Documents
Specification
| Welding Current: | 30-230A |
| Wire Capacity: | 5-15kg |
| Duty Cycle: | 100% @ 68A, 60% @ 88A, 15% @ 175A |
| Cooling System: | Forced Air |
| Spot Welding Timer: | Yes |
| Gas Type: | CO2, Argon, CO2/Argon Mix |
| Torch: | 3m Euro Non-Live - BINZEL® Ergo 15.2 |
| Supply: | 230V |
| Absorbed Power: | 8kW |
| Case Size: | Large |
Nett Weight: |
37.9kg |
Barcode: |
5054630429200 |
Parts Diagram: |
|
Declaration of Conformity: |
|
Instructions: |
