Description
• 170A Maximum performance.
• One of our professional MIGHTYMIG® range this large gas/no-gas welder offers excellent performance at an extremely competitive price.
• This unit is set-up ready-to-go in gas mode but can also be switched easily to use gasless by a simple change of polarity.
• Supplied with high quality cool running Ergo 15.2 Euro torch, 2m earth cable, 1.4m gas hose, twin gauged gas regulator and 0.6 and 0.8mm contact tips.

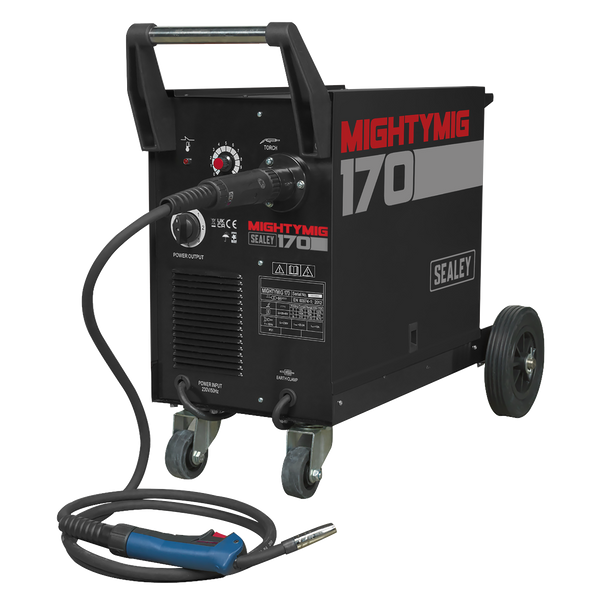

• Illustrated with gas bottle to give an indication of size only; gas is not included.
• A contract for the supply of gas should be arranged with your local gas distributor.
• 3 Year Guarantee*.
• Lifetime guarantee on Transformer*.
• One of our professional MIGHTYMIG® range this large gas/no-gas welder offers excellent performance at an extremely competitive price.
• This unit is set-up ready-to-go in gas mode but can also be switched easily to use gasless by a simple change of polarity.
• Supplied with high quality cool running Ergo 15.2 Euro torch, 2m earth cable, 1.4m gas hose, twin gauged gas regulator and 0.6 and 0.8mm contact tips.
• Illustrated with gas bottle to give an indication of size only; gas is not included.
• A contract for the supply of gas should be arranged with your local gas distributor.
• 3 Year Guarantee*.
• Lifetime guarantee on Transformer*.
Spare Parts
Specification & Documents
Specification
| Welding Current: | 40-170A |
| Wire Capacity: | 5kg |
| Duty Cycle: | 100% @ 55A, 60% @ 70A, 15% @ 140A |
| Cooling System: | Forced Air |
| Gas Type: | CO2, Argon, CO2/Argon Mix |
| Torch: | 3m Euro Non-Live - Ergo 15.2 |
| Supply: | 230V-16A* |
| Absorbed Power: | 5.4kW |
| Case Size: | Large |
| Weight: | 41.5kg |
| Gasless Consumables: | |
| Flux Cored Wire (4.5kg x Ø0.9mm): | TG100/4 |
| Note: | *To achieve maximum power a 32A supply may be required. |
Nett Weight: |
41.5kg |
Barcode: |
5054630047756 |
Declaration of Conformity: |
|
Parts Diagram: |
|
Instructions: |
