Description

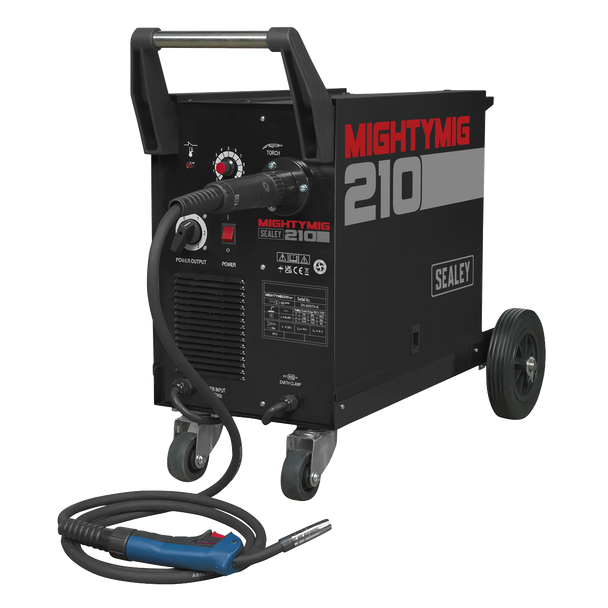

• MIGHTYMIG RANGE – The heavy-duty high output transformer and forced-air cooling to maximize duty cycle performance and efficiency.
• SUITABLE FOR – Both gas and gasless welding.
• MAXIMUM PERFORMANCE – 210A.
• WIRE CAPACITY – 5-15kg Wire Capacity.
• WELDING FEATURES - Variable wire speed control, 6 power levels and thermal overload protection.
• SUPPLIED WITH - High quality cool running Ergo 15.2 Euro torch, 2m earth cable, 1.4m gas hose, twin gauged gas regulator and 0.6 and 0.8mm contact tips.
• 3 YEAR GUARANTEE*.
• LIFETIME GUARANTEE ON TRANSFORMER*.
• SUITABLE FOR – Both gas and gasless welding.
• MAXIMUM PERFORMANCE – 210A.
• WIRE CAPACITY – 5-15kg Wire Capacity.
• WELDING FEATURES - Variable wire speed control, 6 power levels and thermal overload protection.
• SUPPLIED WITH - High quality cool running Ergo 15.2 Euro torch, 2m earth cable, 1.4m gas hose, twin gauged gas regulator and 0.6 and 0.8mm contact tips.
• 3 YEAR GUARANTEE*.
• LIFETIME GUARANTEE ON TRANSFORMER*.
Spare Parts
Specification & Documents
Specification
| Welding Current: | 45-210A |
| Wire Capacity: | 5-15kg |
| Duty Cycle: | 100% @ 80A, 60% @ 105A, 15% @ 210A |
| Cooling System: | Forced Air |
| Gas Type: | CO2, Argon, CO2/Argon Mix |
| Torch: | 3m Euro Non-Live Ergo 15.2 |
| Supply: | 230V-16A |
| Absorbed Power: | 9kW |
| Case Size: | Large |
| Weight: | 51.5kg |
| Gasless Conaumables: | |
| Flux Cored Wire (4.5kg x Ø0.9mm): | TG100/4 |
| Replacement Tips 1mm (Pack of 5): | TG100/2 |
| Note: | To achieve maximum power a 32A supply may be required. |
Nett Weight: |
46.5kg |
Barcode: |
5054630341946 |
Parts Diagram: |
|
Declaration of Conformity: |
|
Instructions: |
