Description

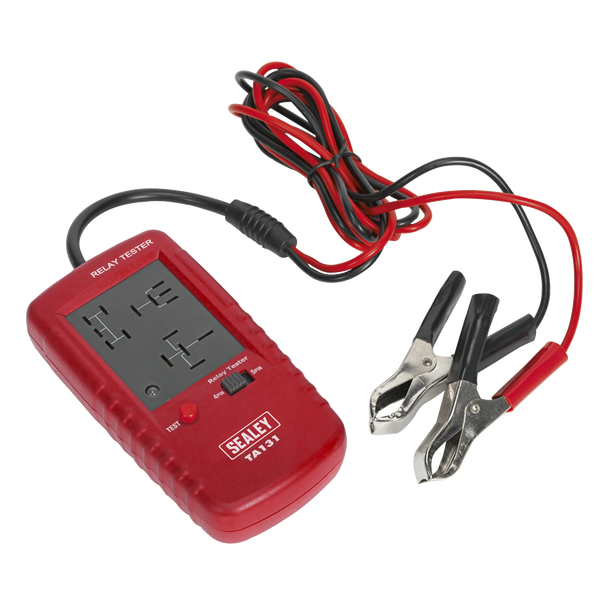

• Health test for 4 and 5-pin electro-mechanical relays commonly found on modern vehicles.
• Test feature will cycle the relay 10 times, testing the resistance, contacts and consistency within each cycle.
• If a cycle fails on the test then this will be indicated by a red LED and alternatively a green LED if relay works.
• Test feature will cycle the relay 10 times, testing the resistance, contacts and consistency within each cycle.
• If a cycle fails on the test then this will be indicated by a red LED and alternatively a green LED if relay works.
Specification & Documents
Specification
| Relay Configuration: | 4 pin/5pin |
| Supply Voltage: | 12V DC (Vehicle Battery) |
| Flying Lead Length: | 1400mm |
| Tester Module Size (L x W x D): | 130 x 70 x 35mm |
| Battery Connection: | Insulated Crocodile Clips |
| Weight: | 245g |
Relay Configurations: |
4 pin, 5 pin |
Nett Weight: |
0.28kg |
Barcode: |
5054511975888 |
Instructions: |
