Description

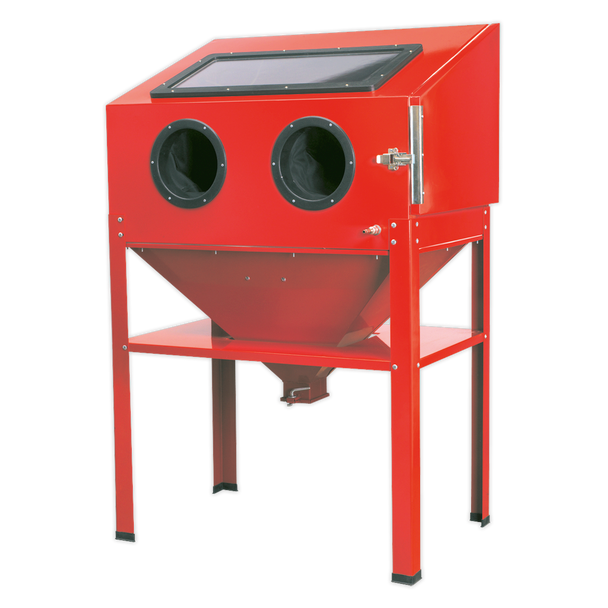

• Heavy-duty steel cabinet with toughened glass viewing screen and integral low voltage illumination.
• Large single side door provides easy-access for bulkier items.
• Includes Ø60mm dust extraction port.
• Heavy gauntlets provide hand protection and each cabinet is supplied with sand blasting gun, four ceramic nozzles and a pack of screen covers.
• Capacity: 0.22m³.
• Overall Size (W x D x H): 890 x 570 x 1380mm.
• Suitable for glass beads, silicone carbide, aluminium oxide and shot blasting grit only.
• Large single side door provides easy-access for bulkier items.
• Includes Ø60mm dust extraction port.
• Heavy gauntlets provide hand protection and each cabinet is supplied with sand blasting gun, four ceramic nozzles and a pack of screen covers.
• Capacity: 0.22m³.
• Overall Size (W x D x H): 890 x 570 x 1380mm.
• Suitable for glass beads, silicone carbide, aluminium oxide and shot blasting grit only.
Spare Parts
Specification & Documents
Air Consumption: |
15cfm |
Door Size: |
Door Width: 480mm, Min./Max. Height: 245/410mm |
Doors: |
1 |
Extraction Port Diameter: |
Ø60mm |
Inlet Size: |
1/4"BSP |
Optional Accessories: |
n/a |
Overall Dimensions (W x D x H): |
890 x 570 x 1380mm |
Viewing Area: |
570 x 270mm |
Nett Weight: |
37.90kg |
Working Aperture: |
n/a |
Barcode: |
5024209123068 |
Declaration of Conformity: |
|
Parts Diagram: |
|
Instructions: |
