Description

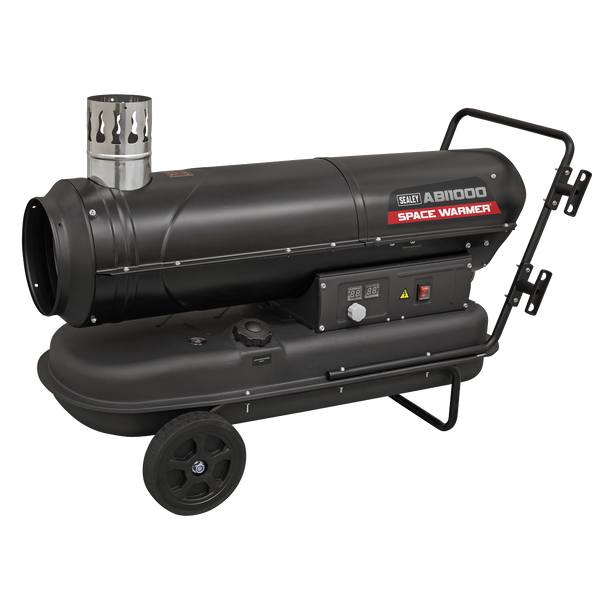

• HEAT OUTPUT - 30KW/102,000Btu/hr ideal for heating marquees, events, halls, workshops, warehouses, construction sites and more.
• 100% HOT CLEAN AIR - Heater blows out 100% clean, fume-free warm air, so it is safe for heating indoor and poorly ventilated spaces.
• FLUE EXHAUST - Combustion by-products are exhausted out of the top of the heater. Sections of ducting are available separately, Model No. ABI1000AK1.
• THERMOSTAT - Allows you to set a required ambient temperature within the space as well as measuring actual ambient temperature. The thermostat will switch the heater on and off as required in order to maintain the set temperature. This saves fuel and adds extra convenience.
• ROBUST DESIGN - Built to perform in challenging areas.
• HIGH QUALITY FEATURES - Includes a stainless steel combustion chamber with fan cooling, built-in flame sensor, Danfoss pump, electronic flame control and electronic control.
• 100% HOT CLEAN AIR - Heater blows out 100% clean, fume-free warm air, so it is safe for heating indoor and poorly ventilated spaces.
• FLUE EXHAUST - Combustion by-products are exhausted out of the top of the heater. Sections of ducting are available separately, Model No. ABI1000AK1.
• THERMOSTAT - Allows you to set a required ambient temperature within the space as well as measuring actual ambient temperature. The thermostat will switch the heater on and off as required in order to maintain the set temperature. This saves fuel and adds extra convenience.
• ROBUST DESIGN - Built to perform in challenging areas.
• HIGH QUALITY FEATURES - Includes a stainless steel combustion chamber with fan cooling, built-in flame sensor, Danfoss pump, electronic flame control and electronic control.
Spare Parts
Specification & Documents
Specification
| Heat Output: | 30kW |
| Nominal Heat Input: | 30kW |
| Gross Calorific Value: | 108 MJ/hr |
| IP Rating: | IPX4 |
| Fuel Consumption: | 2.4kg/hr |
| Air Flow: | 780m3/hr |
| Fuel Tank: | 50L |
| Pump Pressure: | 10 Bar |
| Cable Length: | 1.6m |
Airflow: |
780m³/hr |
Automatic Shut-Off: |
Yes |
Fuel Tank: |
50L |
Fuel: |
Kerosene/Diesel |
Heated Area: |
27,192ft³/770m³ |
Motor Power: |
250W |
Output: |
102,360Btu/hr(30kW) |
Running Time per Filling (Maximum): |
18hr |
Supply: |
230V ~ 50Hz |
Transport Wheels: |
Yes |
Nett Weight: |
34.40kg |
Energy Rating: |
A |
Barcode: |
5054630325786 |
Parts Diagram: |
|
Declaration of Conformity: |
|
Instructions: |
