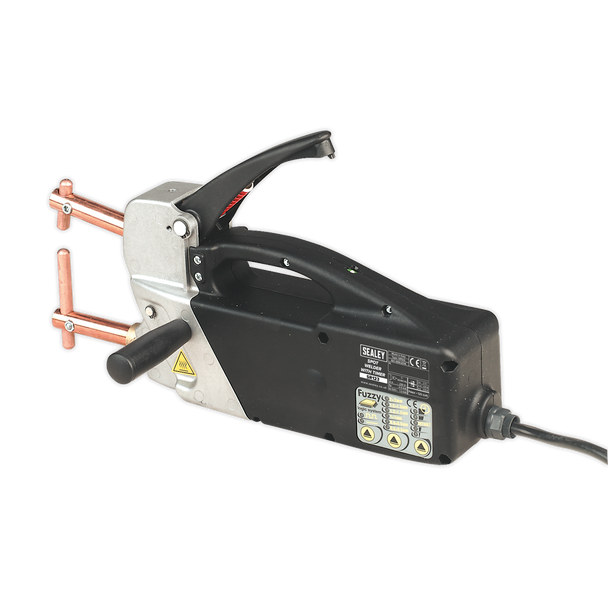

Description
• Integral electronic control allows operator to select thickness of material while automatically calculating the optimum weld duration.
• Also features pulse mode for use on high stress steels commonly found in modern vehicle construction.
• All automatically selected parameters may be overridden by the operator if required.
• Composite casing and handle reduce heat transfer for operator comfort.
• Die-cast aluminium head and chassis reduces overall weight for improved handling.
• Fully adjustable jaw pressure from 40kg to 120kg enables close control of weld quality.
• Supply: 230V-25A (Plug not included).
• Supplied with 120mm welding arms, electrodes and side handle.
• Made in Europe.
Spare Parts
Specification & Documents
| Supply: | 230V |
| Capacity: | 2 + 2mm |
| Maximum Absorbed Power: | 13kW |
| Mains Fuse: | 25A |
| Welding Current (Maximum): | 6300A |
| Duty Cycle: | 1.5% |
| Insulation Class: | B |
| Weight: | 11kg |
Nett Weight: |
11kg |
Barcode: |
5024209481731 |
Declaration of Conformity: |
|
Parts Diagram: |
|
Instructions: |
