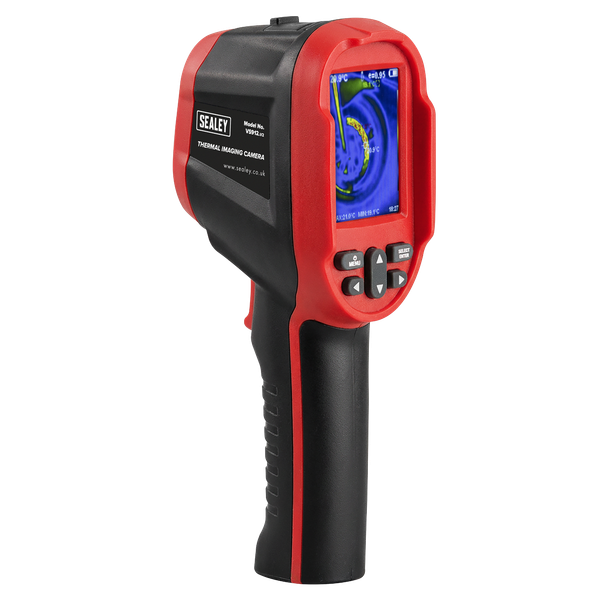

Description
• ASSESS HEAT DISTRIBUTION – Identify hotspots and cold zones in systems and surfaces.
• LOCATE HEAT ACCURATELY – On-screen cursor highlights precise temperature variations.
• CLEAR VISIBILITY – 70mm Screen delivers sharp visual feedback.
• PINPOINT TEST AREA – Traditional image camera overlays thermal image at adjustable intensities.
• COVER WIDE AREA – 26×19° Field of view.
• CLOSE DETAIL – Focal distance from 3.2mm, adjustable between 200-400mm.
• WORK WITHOUT INTERRUPTION – Rechargeable 2000mAh battery.
• DIAGNOSE FAULTS – With heated seats, power windows and wiring resistance.
• FIND FAULTS – Locate electrical overheating in fixings and connections.
• DETECT MOISTURE – Highlight damp areas and potential water ingress.
• CHECK HEATING SYSTEMS – Inspect radiators, plumbing lines and underfloor heating performance.
• REDUCES HEAT LOSS – Reveal insulation gaps around seals, frames and windows.
• STORAGE SOLUTION – Supplied in storage case.
• LOCATE HEAT ACCURATELY – On-screen cursor highlights precise temperature variations.
• CLEAR VISIBILITY – 70mm Screen delivers sharp visual feedback.
• PINPOINT TEST AREA – Traditional image camera overlays thermal image at adjustable intensities.
• COVER WIDE AREA – 26×19° Field of view.
• CLOSE DETAIL – Focal distance from 3.2mm, adjustable between 200-400mm.
• WORK WITHOUT INTERRUPTION – Rechargeable 2000mAh battery.
• DIAGNOSE FAULTS – With heated seats, power windows and wiring resistance.
• FIND FAULTS – Locate electrical overheating in fixings and connections.
• DETECT MOISTURE – Highlight damp areas and potential water ingress.
• CHECK HEATING SYSTEMS – Inspect radiators, plumbing lines and underfloor heating performance.
• REDUCES HEAT LOSS – Reveal insulation gaps around seals, frames and windows.
• STORAGE SOLUTION – Supplied in storage case.
Specification & Documents
Specification
| Display Screen: | 70mm TFT Colour Display |
| Visual Image Resolution: | 3 Megapixel |
| Accuracy: | >0°C ±2% or reading ±2°C/3.6°F; <0°C; ±3°C/5.4°F |
| Thermal Sensitivity: | 0.15°C/0.9°F |
| Wavelength Range: | 8-14um |
| Focus Mode: | Fixed |
| Video Capture: | Yes |
| Software Analysis: | Support |
| Image Capture Frequency: | 25Hz |
| File Format: | JPG/MP4 |
| Storage: | Built-in 4G eMMC (about 3G storage space available to the user |
| Power Supply: | Rechargeable 2000mAh battery or Type-C Power Supply |
| Auto-Power Off: | Selectable: 5min/20min/Not Power-Off Automatically |
| Working Conditions: | -10°C to 50°C/14°F to 144°F; to 85%RH (non-condensing) |
| Storage Conditions: | -20°C to 60°C/-4°F to 140°F; to 85%RH (non-condensing) |
Battery Run Time: |
3hrs |
Colour Palette: |
Rainbow, Iron Oxide Red, Cold Color, Black & White, White & Black |
Emissivity: |
0.1 to 1 Adjustable |
Field of Vision: |
26°×19° |
Focal Distance: |
3.2mm, adjustable between 200–400mm |
Image Mix (Camera to Thermal): |
0%, 25%, 50%, 75%, 100% |
Memory Capacity: |
Internal Memory 3GB |
Power Source: |
2000mAh |
Resolution: |
Infrared Image 120 x 90 (10800 Pixels)-Camera Image 3 Mega Pixels |
Screen Size: |
70mm |
Temperature Range: |
-20°C to +550°C (-4°F - 1022°F) |
Nett Weight: |
0.66kg |
Barcode: |
5054630689376 |
Safety Data Sheet: |
|
Instructions: |
