Description

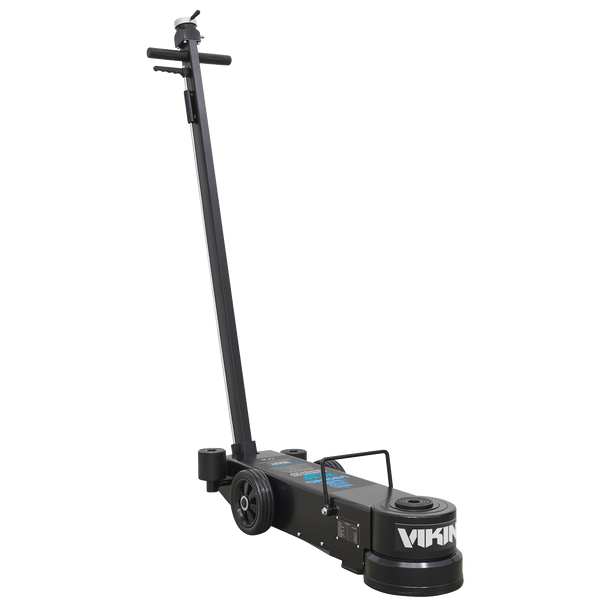

• HEAVY DUTY HYDRAULICS - Powerful and reliable, this 3-stage jack is ideal for workshop or roadside use.
• AIR OPERATED - Takes the effort out of lifting heavy plant, tractors and commercial vehicles.
• ACCESSORIES INCLUDED - Supplied with 45mm and 75mm extensions.
• VERSATILE CHASSIS - Long reach, low entry.
• MAXIMUM CAPACITY: 60 Tonne.
• 3 Year Guarantee*.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
• AIR OPERATED - Takes the effort out of lifting heavy plant, tractors and commercial vehicles.
• ACCESSORIES INCLUDED - Supplied with 45mm and 75mm extensions.
• VERSATILE CHASSIS - Long reach, low entry.
• MAXIMUM CAPACITY: 60 Tonne.
• 3 Year Guarantee*.
• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Spare Parts
Specification & Documents
Specification
Air Consumption: |
11.5cfm |
Capacity: |
60 Tonne |
Chassis Length: |
875mm |
Extensions: |
45/75mm |
Maximum Length: |
2255mm |
Minimum Saddle Height: |
175mm |
Overall Width: |
295mm |
Piston Stroke: |
247mm |
Screw Extension: |
n/a |
Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne): |
377/60 |
Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne): |
458/40 |
Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne): |
542/20 |
Nett Weight: |
70kg |
Width without Wheels: |
215mm |
Working Pressure: |
116-174psi |
Barcode: |
5054630313585 |
Parts Diagram: |
|
Declaration of Conformity: |
