Description

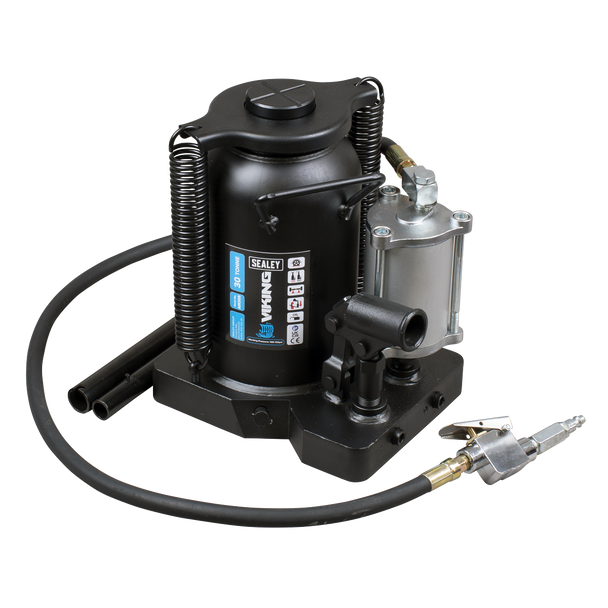

• DUAL CONTROL - Air/Hydraulic bottle jack capable of both air assisted or manual operation.
• SAFETY VALVE - Fitted with safety overload valve.
• EXTRA THICK BASE - All steel, one-piece base, reservoir and pump cylinder design gives added strength and stops distortion under load.
• CONVENIENT HANDLE - Telescopic pump handle for easy storage. Allows use when an air supplier is unavailable.
• EASED POSITIONING - 90° Rotating pump aids positioning the jack.
• SERVICEABLE RAM - Fully serviceable ram piston with extension screw. Service kit readily available.
• 3 YEAR GUARANTEE*.
• SAFETY VALVE - Fitted with safety overload valve.
• EXTRA THICK BASE - All steel, one-piece base, reservoir and pump cylinder design gives added strength and stops distortion under load.
• CONVENIENT HANDLE - Telescopic pump handle for easy storage. Allows use when an air supplier is unavailable.
• EASED POSITIONING - 90° Rotating pump aids positioning the jack.
• SERVICEABLE RAM - Fully serviceable ram piston with extension screw. Service kit readily available.
• 3 YEAR GUARANTEE*.
Spare Parts
Specification & Documents
Air Consumption: |
7.5cfm |
Capacity: |
30 Tonne |
Maximum Height: |
524mm |
Minimum Height: |
279mm |
Piston Stroke: |
150mm |
Screw Extension: |
95mm |
Nett Weight: |
29kg |
Working Pressure: |
109-123psi
|
Barcode: |
5054630365560 |
Instructions: |
|
Safety Data Sheet: |
|
Parts Diagram: |
|
Declaration of Conformity: |
