Description

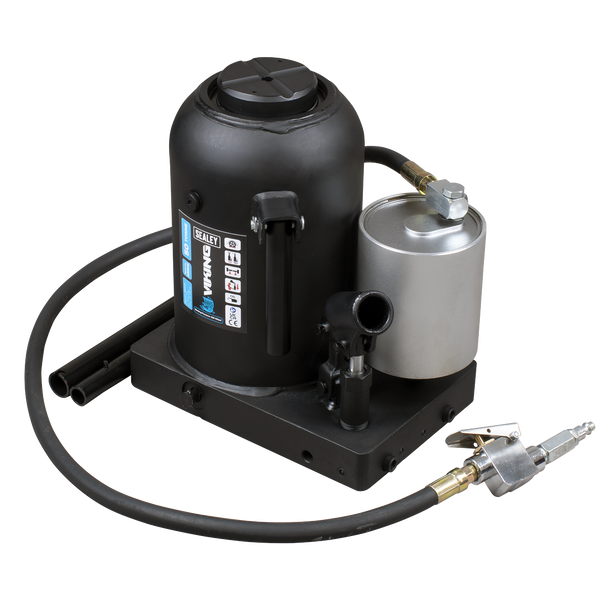

• DUAL CONTROL - Air/Hydraulic bottle jack capable of both air assisted or manual operation.
• SAFETY VALVE - Fitted with safety overload valve.
• EXTRA THICK BASE - All steel, one-piece base, reservoir and pump cylinder design gives added strength and stops distortion under load.
• CONVENIENT HANDLE - 2-Piece pump handle for easy storage. Allows use when an air supplier is unavailable.
• EASED POSTIONING - 90° Rotating pump aids positioning the jack.
• SERVICEABLE RAM - Fully serviceable ram piston. Service kit readily available.
• 3 YEAR GUARANTEE*.
• SAFETY VALVE - Fitted with safety overload valve.
• EXTRA THICK BASE - All steel, one-piece base, reservoir and pump cylinder design gives added strength and stops distortion under load.
• CONVENIENT HANDLE - 2-Piece pump handle for easy storage. Allows use when an air supplier is unavailable.
• EASED POSTIONING - 90° Rotating pump aids positioning the jack.
• SERVICEABLE RAM - Fully serviceable ram piston. Service kit readily available.
• 3 YEAR GUARANTEE*.
Spare Parts
Specification & Documents
Air Consumption: |
10.5cfm |
Capacity: |
50 Tonne |
Chassis Length: |
261mm |
Maximum Height: |
470mm |
Minimum Height: |
300mm |
Overall Width: |
178mm
|
Piston Stroke: |
170mm |
Screw Extension: |
n/a
|
Nett Weight: |
37kg |
Working Pressure: |
109-123psi
|
Barcode: |
5054630374685 |
Instructions: |
|
Safety Data Sheet: |
|
Parts Diagram: |
|
Declaration of Conformity: |
